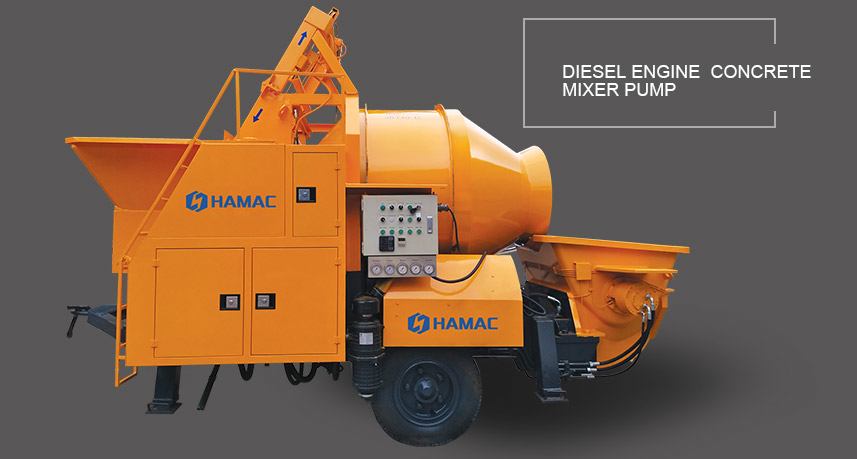

DJBT40 Diesel Concrete Mixer Pump
In the past time, the construction subcontractor wanted to buy a concrete mixer to produce the concrete.
View details
Concrete Mixer Pumps
Concrete mixer with pump
Concrete mixer with pump, including diesel and electric type, combines the features of concrete pump and concrete mixer. Its function is mixing and.
Concrete Mixer Pumps
Concrete mixer with pump
Concrete mixer with pump, including diesel and electric type, combines the features of concrete pump and concrete mixer. Its function is mixing and pumping.Concrete mixing pump is most suitable for houses and commercial buildings under thirty floors, roads, water conservancy, etc. In addition, it is more popular where power and communication are scattered and on-site mixing is required.

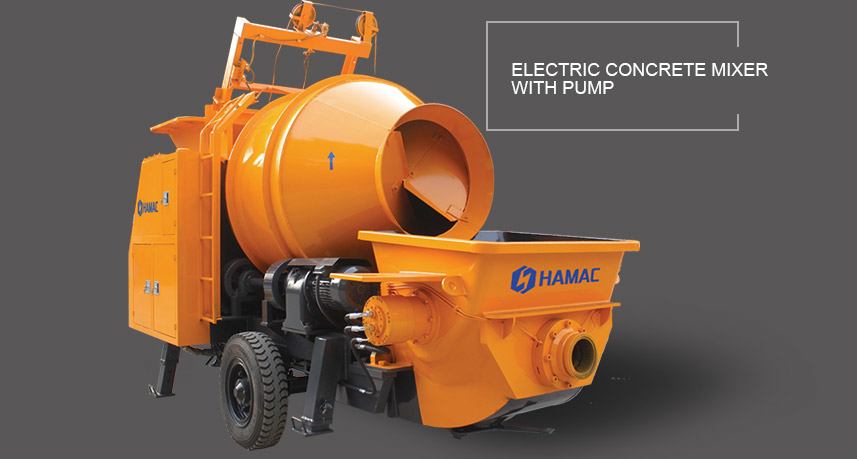

JBT40 Electric Concrete Mixer Pump
As the name implies, the power system of electric concrete mixer pump machine is motor. Because using.
View details

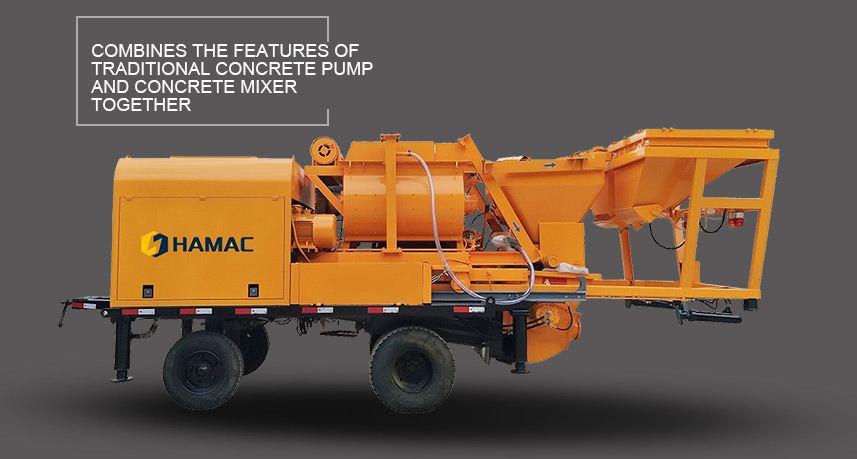

HBT25
HBT25-L1 Electric Concrete Mixer Pump is a very useful machine which definitely combines the features of.
View details

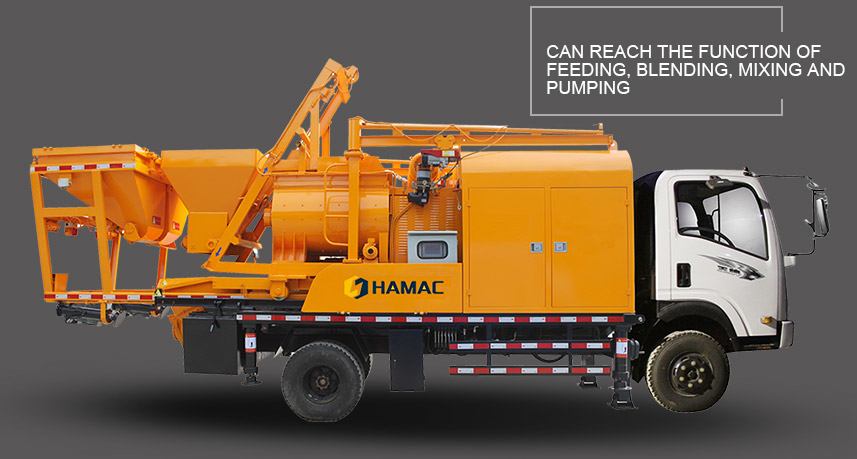

MHBT25
HBT25-L2 Electric Mobile Concrete Mixer Pump is a very useful machine which definitely combines the features.
View details

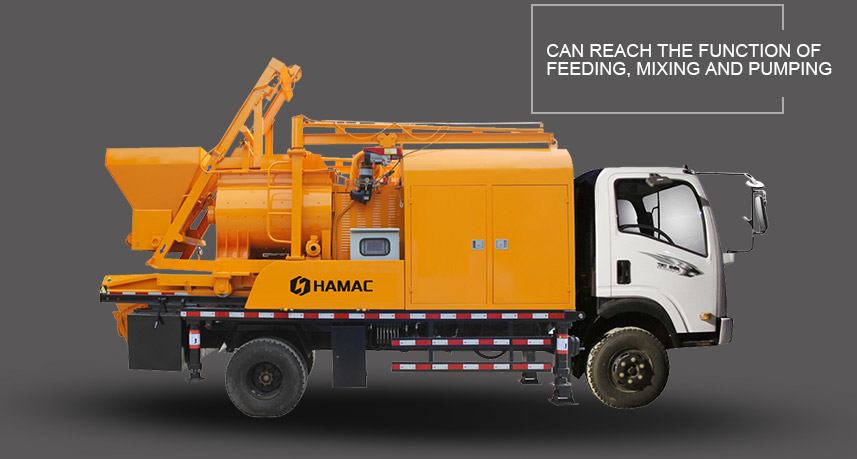

MHBT25
MHBT25-L1 Electric Concrete Mixer Pump is a very useful portable machine which definitely combines the.
View details

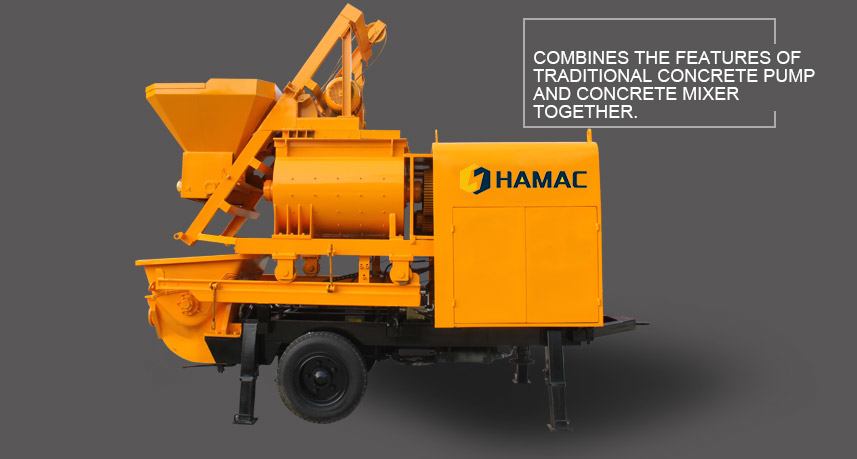

HBT25
HBT25-L2 Electric Concrete Mixer Pump is a very useful machine which definitely combines the features of.
View detailsWhat Defines a Good Concrete Mixer Pumps
A Concrete mixer with pump puts a drum mixer and a concrete pump on one chassis. One diesel engine drives both; one operator controls both; and the truck that would have carried two machines now carries one. For township housing, rural roads, small commercial buildings and repair works, that combination is often the only economic way to pump concrete at all.
Output models span roughly 15 to 50 m³/h with horizontal pumping distances between 100 and 500 m, which covers most low-rise and medium-rise horizontal pours. Self-climbing placing booms or separate pipeline extensions add reach where needed.
Remote-control operation
Cable or radio remote lets a single worker control pour rate from the placement point.
Pumping to distance
Pipelines carry concrete horizontally or vertically to slabs and columns the truck cannot reach.
Two machines, one footprint
Mixing and pumping in a single towed or truck-mounted unit dramatically reduces mobilisation cost.
Buying Questions Answered
Can I use it as a standalone mixer?
Yes — many customers discharge directly into wheelbarrows or a skip when pumping is not needed.
How many workers does it need?
Normally three: one at the remote control at the placement point, one managing the feed, and one finishing the concrete.
Which model suits a three-storey building?
A 25-30 m³/h unit with 120 m vertical reach handles most three to five-storey residential structures.
Can the pump handle pumped mixes with 40 mm aggregate?
Models with larger valve openings accept up to 40 mm crushed stone, provided the mix has adequate fines content and slump stays above 120 mm.
Talk to an engineer
Need Help Narrowing Down the Choice?
Send your output requirement and site conditions; we will shortlist the configurations that actually fit.
