Diesel Concrete Mixer With Pump For Sale
Concrete mixer pump combines concrete mixer with a concrete pump. Two functions in one machine. There are two.
View details
Concrete Pump
Various Concrete Pumping Solutions
HAMAC provide our clients with various types of concrete pumps to transfer the concrete to high-rise buildings, highway and overpasses. We can also customize.
Concrete Pump
Various Concrete Pumping Solutions
HAMAC provide our clients with various types of concrete pumps to transfer the concrete to high-rise buildings, highway and overpasses. We can also customize concrete pumps according to the needs of customers.
Truck

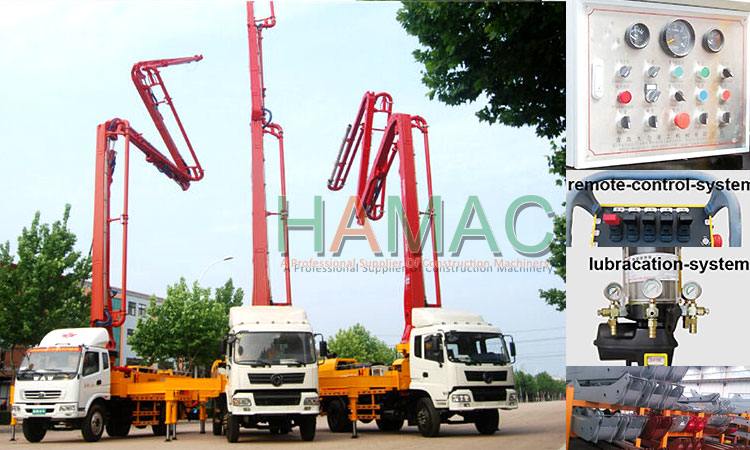

A truck mounted concrete boom pump is generally mounted onto a truck chassis, hence why it can also be.
View details
Trailer concrete pump
The first type of concrete pump is mounted on a trailer, and it is commonly referred to as trailer-mounted.
View details
Concrete line pump
This type of concrete pump is mounted on a truck, and it is commonly referred to as a line pump or.
View details
Concrete placing boom
A concrete placing boom is the final element of concrete mixture pipeline transportation system. It is.
View details
High-Rise Core Pour Package
Placing boom plus booster pump configuration for tower cores above one hundred metres.
View details
Tunnel Secondary Lining Package
Electric line pump and pipeline scheme engineered for low-ventilation tunnel environments.
View detailsWhat Defines a Good Concrete Pumps & Placing Booms
Selection depends on three numbers — peak m³/h required, horizontal distance, and vertical height — plus an honest look at the mix: aggregate shape, fines content and slump determine whether a given pipeline length is achievable at all.
HAMAC supplies truck-mounted boom pumps for high-rise and large slabs, static and trailer line pumps for tunnels and long horizontal runs, spider placing booms for wide industrial floors, self-climbing booms that travel with the core of a tower, and separate placing masts for precast yards.
Boom reach without a crane
Independent placing puts concrete precisely where the crew is working without occupying lifting capacity.
Continuous placement
Steady flow keeps cold joints out of slabs and eliminates the double-handling cost of crane-and-skip methods.
Safety built into the controls
Outrigger interlocks, boom angle limits and emergency stop circuits protect both crew and structure.
Buying Questions Answered
How do I prevent pipeline blockages?
Keep slump at 120-180 mm, maintain adequate fines, prime the line with mortar before each pour and avoid long idle periods.
Can the machine handle low-slump concrete?
Most units are optimised for 120-200 mm slump; below that, pressure requirements rise sharply and output falls.
How tall can it pump?
Vertical reaches of 100-150 m are routine with correctly designed pipelines and adequate concrete pressure.
What is the expected service life of wear parts?
Delivery cylinders 40,000-80,000 m³, cutting ring and wear plate 15,000-30,000 m³ depending on aggregate abrasiveness.
Talk to an engineer
Need Help Narrowing Down the Choice?
Send your output requirement and site conditions; we will shortlist the configurations that actually fit.
