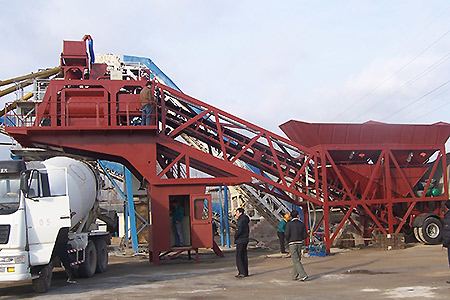

YHZS50 Mobile Batching Plant
YHZS50 concrete batching plant is kind of Mobile Concrete Mixing Plant developed by HAMAC Group, based on the.
View details
Mobile Batching Plant
Mobile Concrete Batching Plant
Mobile Concrete Mixing Plant is fully automatic plant with electronic load cell type, weighs batching system for aggregates, cement, water and additive. The.
Mobile Batching Plant
Mobile Concrete Batching Plant
Mobile Concrete Mixing Plant is fully automatic plant with electronic load cell type, weighs batching system for aggregates, cement, water and additive. The pan mixer suspended with 3 load cells for weighing of aggregate, cement, water and additive. The recipes selection is to be entered and based on the number of batches selected, all operation are carried out fully automatically i. e. If the plant is set on ‘auto’ mode then weighing of aggregate, cement, water and additive and discharge from mixer are all carried out according to the sequence, for the number of batches selected.
YHZS75 Mobile Batching Plant
The modular design of without foundation and commissioning enables the modular mobile concrete mixing plant.
View details

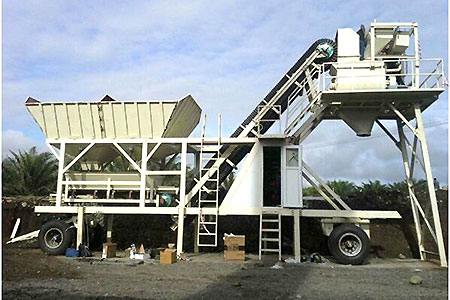

YHZS25 Mobile Batching Plant
YHZS25 Mobile concrete mixing plant which adopts advanced technologies and scientific researching results.
View details
YHZS35 Mobile Batching Plant
YHZS35 concrete batching plant is kind of Mobile Concrete Mixing Plant developed by HAMAC Group, based on the.
View details

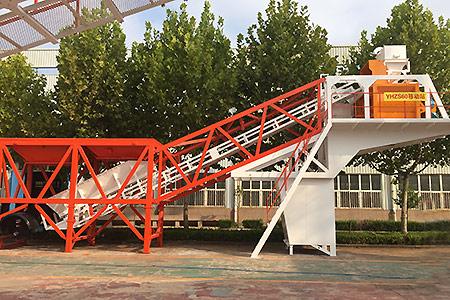

YHZS60 Mobile Batching Plant
YHZS60 concrete batching plant is kind of Mobile Concrete Mixing Plant developed by HAMAC Group, based on the.
View details

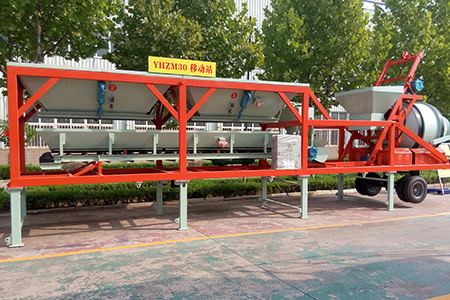

YHZM25 Mobile Batching Plant
YHZM25 concrete batching plant is kind of Mobile Concrete Mixing Plant developed by HAMAC Group, based on the.
View detailsWhat Defines a Good Concrete Batching Plants
A Mobile Concrete Batching Plant is the heart of any ready-mix operation. Aggregates are stored in bins, weighed on load cells, transferred by skip hoist or belt conveyor, then discharged together with cement, water and admixtures into either a twin-shaft mixer or — on dry-mix layouts — straight into the truck drum. Holding that sequence inside a ±1% weighing tolerance, hour after hour, is what separates a plant that sells concrete from a plant that makes complaints.
HAMAC builds Mobile Concrete Batching Plant units in three layouts: stationary (bolted or foundation-mounted), mobile units that fold onto one chassis and tow to the next site, and compact dry-mix skip-hoist plants for remote jobs where a belt conveyor is not practical. Each uses the same weighing hardware and the same control platform, so operators can move between them without retraining.
Fast site transfer
Mobile versions fold with silo and conveyor attached; one tractor unit and one day are enough to be pouring again.
Mixer options to suit the mix
Twin-shaft for high-strength and pumped mixes, planetary for precast and coloured concrete, pan for dry-cast block production.
Built for hot climates
Optional chilled water plant, ice weighing and aggregate shading keep concrete below 30°C on Gulf and African jobsites.
Buying Questions Answered
How long does installation take?
A mobile plant is producing within 2-3 days. A stationary plant typically needs 15-25 days including foundation curing.
Should I choose wet-mix or dry-mix?
Wet-mix (central mix) gives better homogeneity, lower cement consumption for the same strength and faster discharge cycles — it is the normal choice for ready-mix. Dry-mix costs less and moves more easily, and works well when trucks mix en route on short hauls.
Is the control system available in my language?
The interface supports English, Spanish, Portuguese, French, Russian and Vietnamese; other languages can be added on request.
Can it run on a generator?
Yes. We size the genset with the mixer start-up surge in mind — usually 1.6x running load — and can add soft starters to reduce it.
Talk to an engineer
Need Help Narrowing Down the Choice?
Send your output requirement and site conditions; we will shortlist the configurations that actually fit.
