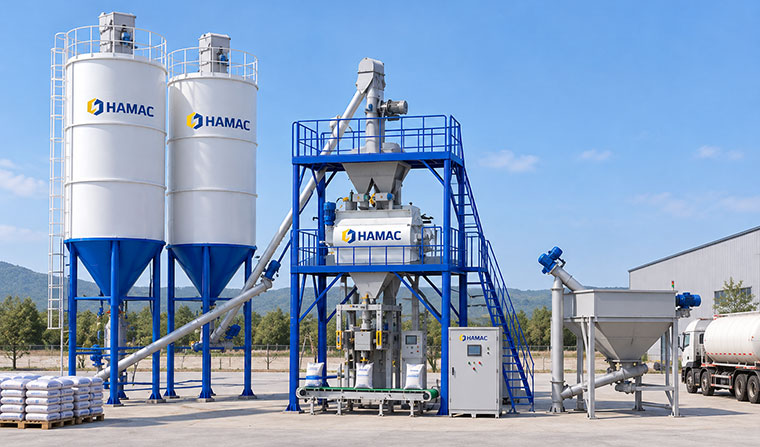

20-40 ton/h Dry Mortar Mixing Plant
HAMAC automatic wall putty manufacturing machine wall putty manufacturing plant is a specialized production.
View details
Dry Mortar Plants
Dry Mix Mortar Plant
HAMAC specializes in dry mortar production equipment, including mixers (ribbon, plough shear), dryers, silos, conveyors, and packing & batching systems. We.
Dry Mortar Plants
Dry Mix Mortar Plant
HAMAC specializes in dry mortar production equipment, including mixers (ribbon, plough shear), dryers, silos, conveyors, and packing & batching systems. We provide reliable solutions for wall putty and dry mortar plants.

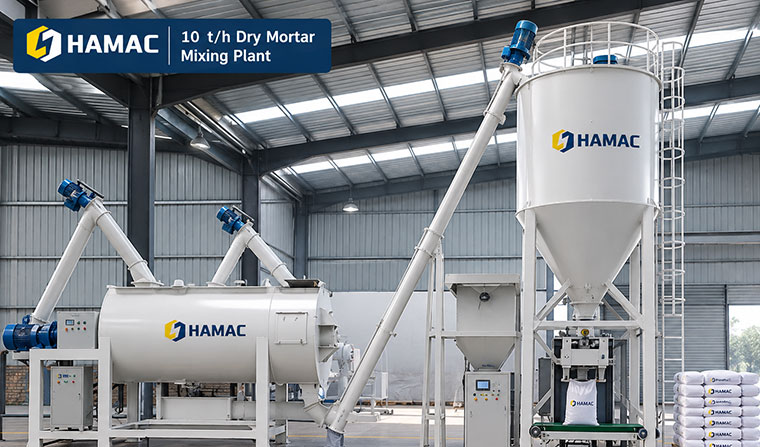

8-20 ton/h Dry Mortar Mixing Plant
HAMAC Mini Compact Dry Mix Production Line HAMAC 8-20 ton/h dry mortar mixing plant is a compact.
View details

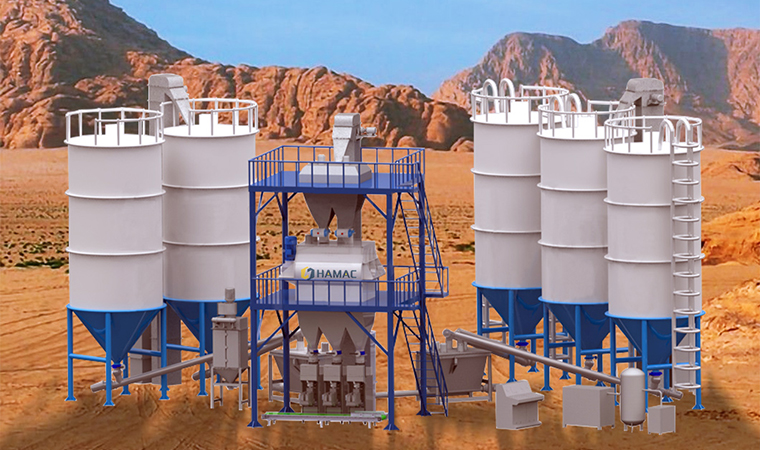

80-120 ton/h Dry Mortar Mixing Plant
This integrated dry mix mortar plant adopts an energy-efficient tower structure, equipped with core.
View details

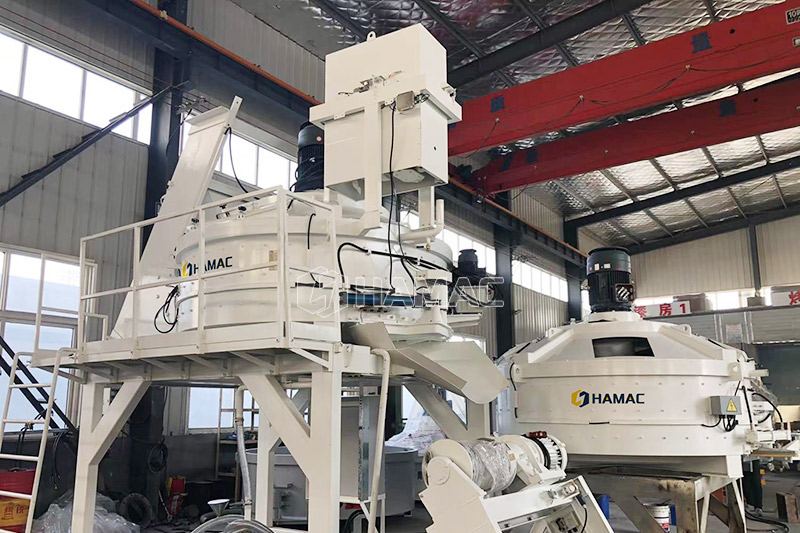

80 ton/h Dry Mortar Mixing Plant
Efficient 80 T/H Dry Mortar Plant with Stepped Layout This high-capacity production line is engineered for.
View details

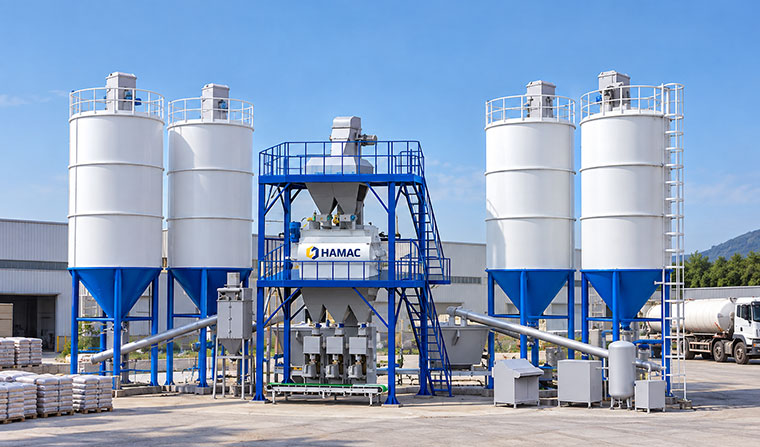

60-80 ton/h Dry Mortar Mixing Plant
HAMAC stepped structure dry mix plant dry mix mortar mixer integrates core components including cement silo.
View details

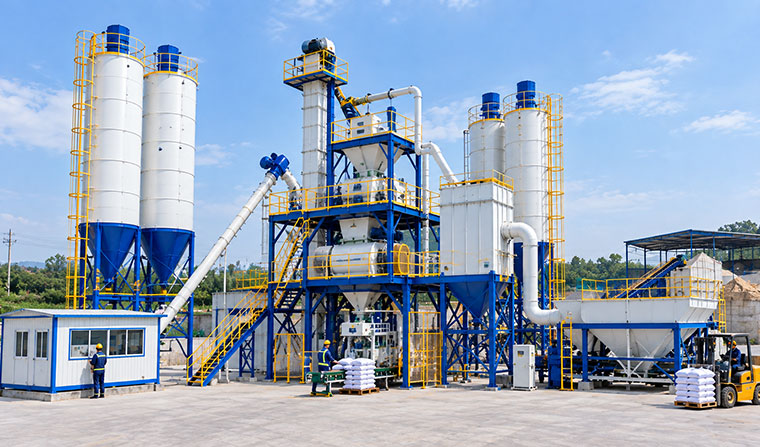

40-60 ton/h Dry Mortar Mixing Plant
HAMAC stepped type dry mix plant and dry mix mortar mixer adopts a rational stepped structural layout.
View detailsWhat Defines a Good Dry Mortar Plants
Factory-blended mortar has replaced site mixing on most organised markets, and a Dry Mix Mortar Plant is what makes it possible: dried sand is screened and graded, cement, lime or gypsum and additives are weighed, then everything is blended to a homogeneity that cannot be achieved in a site mixer.
Each line is configured by product portfolio: masonry mortar, plastering and rendering mixes, tile adhesives, self-levelling compounds, thermal insulation mortar, waterproofing slurries and gypsum-based products.
Sand drying to specification
Rotary drum dryers bring moisture below 0.5% so the blend is stable in storage.
Homogeneity beyond site mixing
Ploughshare or single-shaft paddle mixers deliver uniform additive distribution batch after batch.
Dust-controlled environment
Pulse-jet cartridge filters at every transfer point keep the plant inside emission limits.
Buying Questions Answered
How long does installation take?
Typically 45-70 days including foundations, erection, electrical connection and commissioning.
How is product quality checked?
We recommend a small laboratory setup — sieve analysis, compressive and flexural testing of standard prisms.
Can one plant make many products?
Yes, provided you have enough micro-ingredient hoppers; typical installations produce 6-15 different formulations.
Tower or stepped layout?
Tower plants need less land and use gravity flow but require taller structures; stepped plants have lower height, easier maintenance and lower foundation cost.
Talk to an engineer
Need Help Narrowing Down the Choice?
Send your output requirement and site conditions; we will shortlist the configurations that actually fit.
