38m Truck Mounted Concrete Boom Pump
Model：HMC5038 Country: Myanmar Delivery time: July, 2020 Project: Commercial concrete station Provide one-stop service for customers Truck mounted concrete.
Concrete Mixer Pumps

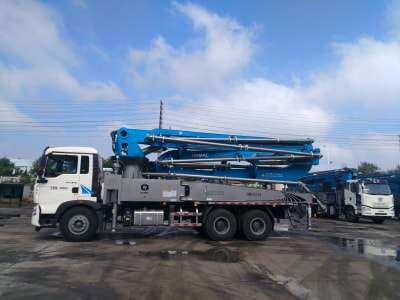

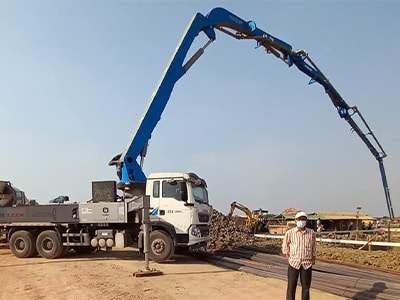

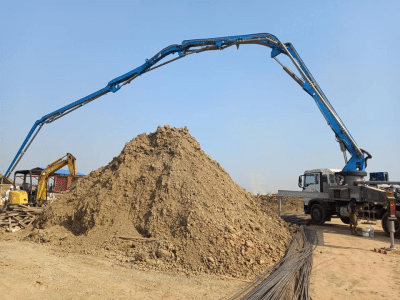

38m Truck Mounted Concrete Boom Pump
A 38m Truck Mounted Concrete Boom Pump puts a drum mixer and a concrete pump on one chassis. One diesel engine drives both; one operator controls both; and the truck that would have carried two machines now carries one. For township housing, rural roads, small commercial buildings and repair works, that combination is often the only economic way to pump concrete at all.
Output models span roughly 15 to 50 m³/h with horizontal pumping distances between 100 and 500 m, which covers most low-rise and medium-rise horizontal pours. Self-climbing placing booms or separate pipeline extensions add reach where needed.
Choosing a 38m Truck Mounted Concrete Boom Pump is rarely decided by the price tag alone. Downtime, concrete quality consistency, fuel consumption per cubic metre and the availability of wear parts across a five-year operating window matter far more to the final cost per tonne or per cubic metre produced.
Key Advantages of 38m Truck Mounted Concrete Boom Pump
Fast set-up
Hydraulic outriggers and folding pipeline mean production begins within about 30 minutes of arrival.
Remote-control operation
Cable or radio remote lets a single worker control pour rate from the placement point.
Pumping to distance
Pipelines carry concrete horizontally or vertically to slabs and columns the truck cannot reach.
Two machines, one footprint
Mixing and pumping in a single towed or truck-mounted unit dramatically reduces mobilisation cost.
One operator, one engine
Lower fuel burn and smaller crew compared with running a separate mixer and pump.
Diesel independence
Runs where site power does not exist, with electric-motor variants available for fixed yards.
Technical Parameters
Indicative ranges for standard configurations. Final values are confirmed against your project requirements.
| Parameter | Specification |
|---|---|
| Theoretical output | 15 - 50 m³/h |
| Max vertical distance | 30 - 120 m |
| Max horizontal distance | 100 - 500 m |
| Mixing capacity | 350 - 750 litres per batch |
| Concrete slump | 80 - 200 mm |
| Max aggregate size | 20 - 40 mm crushed stone |
| Diesel engine power | 37 - 110 kW |
| Distribution valve | S-tube valve, hydraulic driven |
Typical Applications
On typical projects this equipment is selected where output reliability governs the whole schedule.
Water tanks and small bridges
Continuous supply to formwork in confined sites
Repair and retrofit works
Short, frequent pours inside existing structures
Township housing and villas
Foundations, slabs and columns for small to medium residential projects
Slab-on-grade and warehouses
Large horizontal pours where placing boom reach is sufficient
Rural roads and culverts
Mobile pours along alignments far from a batching plant
From Enquiry to Commissioning
Six defined stages, each with named deliverables, so nothing is left to interpretation.
Requirement study
We start with your mix design, hourly output target, aggregate size, jobsite power supply and site layout — not with a catalogue page.
Scheme design
Our engineering team issues a layout drawing, foundation loads, power requirement and an equipment list matched to the target output.
Quotation & contract
A fixed specification quotation with clear technical annexes protects both sides; no vague "standard configuration" wording.
Production & inspection
Weekly production photos, welding and pressure test records, plus third-party inspection if your project requires it.
Delivery & installation
Container or break-bulk shipment, then on-site supervision of assembly, alignment, calibration and dry-run.
After-sales
Remote diagnostics by video call, spare parts dispatch within 48 hours for stocked items, and periodic return visits.
Frequently Asked Questions about 38m Truck Mounted Concrete Boom Pump
Is it difficult to clean?
No. A wash-out port, sponge ball and water tank are standard, and full cleaning takes about 20 minutes.
Which model suits a three-storey building?
A 25-30 m³/h unit with 120 m vertical reach handles most three to five-storey residential structures.
Can I use it as a standalone mixer?
Yes — many customers discharge directly into wheelbarrows or a skip when pumping is not needed.
What happens if the pour is interrupted?
The hopper agitator keeps the concrete moving; pipelines beyond roughly 30 minutes of inactivity should be cleaned or the concrete re-primed.
How many workers does it need?
Normally three: one at the remote control at the placement point, one managing the feed, and one finishing the concrete.
