HMC150 self loading concrete mixer in Oman
The client has a order of four sets self loading mixers total, this was the first batch, two sets of 1.5cbm model, client visited and satisfied with our.
Self-Loading Concrete Mixers
HMC150 self loading concrete mixer in Oman
A HMC150 self loading concrete mixer in Oman replaces the loader, the batching plant and the mixer truck on small and dispersed jobsites. The hydraulic arm loads aggregate and cement from the stockpile into its own drum, water is metered by an on-board system with an electronic weighing display, and the machine then travels to the pour point and discharges through a rotating chute.
For contractors working across several small sites per week — rural roads, canal linings, housing clusters, small municipal works — this removes the need to move a full batching plant or to keep a fleet of trucks supplied over long haul roads.
Choosing a HMC150 self loading concrete mixer in Oman is rarely decided by the price tag alone. Downtime, concrete quality consistency, fuel consumption per cubic metre and the availability of wear parts across a five-year operating window matter far more to the final cost per tonne or per cubic metre produced.
Key Advantages of HMC150 self loading concrete mixer in Oman
Low cost per cubic metre
Best economics appear where daily volume sits between roughly 30 and 200 m³.
Electronic batching
Digital water meter and batch counter provide traceable output records.
Genuinely independent
No loader, no batching plant, no mixer truck — one machine completes the whole concrete chain.
Rotating and elevating drum
Discharge to either side and over the machine, useful on narrow alignments and inside structures.
All-terrain chassis
Articulated frame, four-wheel drive and high-flotation tyres cope with muddy access roads.
Loads its own materials
Hydraulic loading bucket with weigh-by-drum keeps proportions consistent batch to batch.
Technical Parameters
Indicative ranges for standard configurations. Final values are confirmed against your project requirements.
| Parameter | Specification |
|---|---|
| Batch output | 1.2 - 6.5 m³ per batch |
| Drum capacity | 1.8 - 9 m³ |
| Drum rotation | Up to 270° hydraulic rotation |
| Chassis | Articulated 4-wheel drive, 4-wheel steer option |
| Engine power | 55 - 130 kW |
| Water system | Electric pump with digital flow meter and pressure washer |
| Loading bucket capacity | 0.3 - 0.8 m³ |
| Weighing system | Electronic drum weighing with batch counter and printer option |
Typical Applications
Field experience across our export markets shows a clear pattern of applications.
Rural and secondary roads
Small pours along long alignments where a batching plant cannot follow
Emergency and relief works
Rapid deployment after floods or landslides
Bridge and culvert maintenance
Mobile production for scattered repair locations
Mining camps and access roads
Self-sufficient production in remote areas
Irrigation canals and culverts
Continuous linear pours outside the plant supply radius
From Enquiry to Commissioning
Six defined stages, each with named deliverables, so nothing is left to interpretation.
Requirement study
We start with your mix design, hourly output target, aggregate size, jobsite power supply and site layout — not with a catalogue page.
Scheme design
Our engineering team issues a layout drawing, foundation loads, power requirement and an equipment list matched to the target output.
Quotation & contract
A fixed specification quotation with clear technical annexes protects both sides; no vague "standard configuration" wording.
Production & inspection
Weekly production photos, welding and pressure test records, plus third-party inspection if your project requires it.
Delivery & installation
Container or break-bulk shipment, then on-site supervision of assembly, alignment, calibration and dry-run.
After-sales
Remote diagnostics by video call, spare parts dispatch within 48 hours for stocked items, and periodic return visits.
Frequently Asked Questions about HMC150 self loading concrete mixer in Oman
Can it discharge into a pump?
Yes — the rotating chute feeds a pump hopper directly, extending reach to upper floors.
Is spare parts supply reliable?
Wear items such as drum liners, hydraulic seals and chute liners are stocked and ship with the machine as a starter kit.
Does it need a skilled operator?
It needs a trained operator, and most crews learn the full cycle within a week; we provide training during commissioning.
How much concrete can one machine produce per day?
Typically 80-200 m³ depending on haul distance, batch size and how many load cycles are feasible per hour.
What maintenance is critical?
Daily greasing of the drum rollers and loading arm, weekly checks of hydraulic pressure and tyre condition, and regular drum cleaning to prevent build-up.
Related Equipment & Resources
Oman Crushing Plant Case
Engineering, manufacturing and after-sales support for Oman Crushing Plant Case — specification, layout and quotation on request.
View details

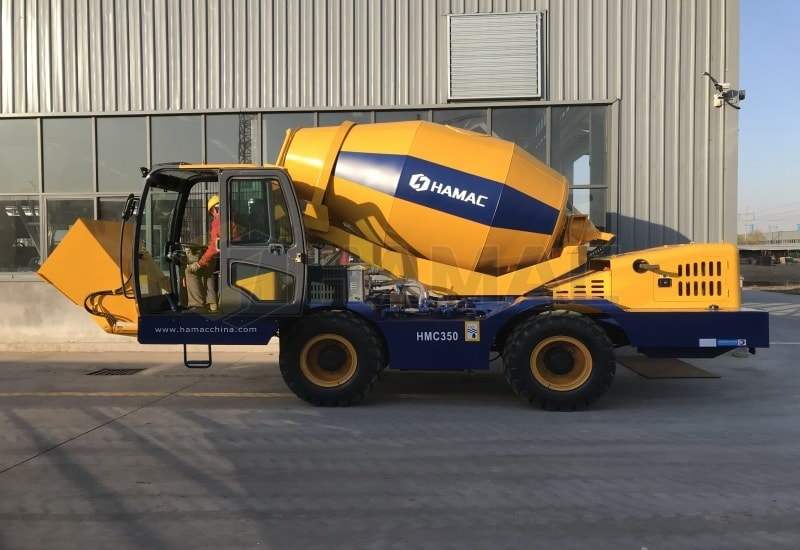

HMC350 Self
