Efficient Concrete Work for Housing Projects in El Salvador

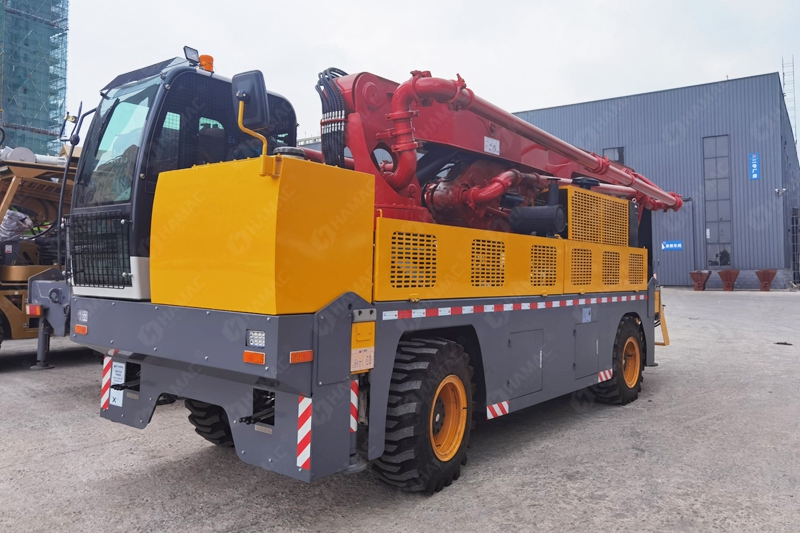

In El Salvador, a contractor accelerated low-income housing construction using a compact, diesel-powered concrete mixer pump designed for confined sites and.
Concrete Batching Plants
Efficient Concrete Work for Housing Projects in El Salvador
Configuration is driven by real numbers: target hourly output, number of aggregate bins, cement silo capacity, available power and whether you need a winter heating package for low ambient temperatures. Those answers determine the mixer size, aggregate storage volume and the concrete discharge height.

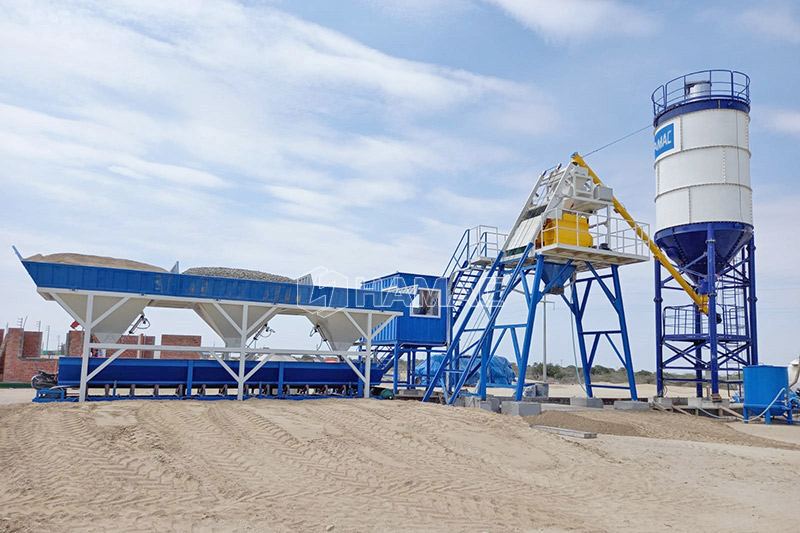

HAMAC builds Efficient Concrete Work for Housing Projects in El Salvador units in three layouts: stationary (bolted or foundation-mounted), mobile units that fold onto one chassis and tow to the next site, and compact dry-mix skip-hoist plants for remote jobs where a belt conveyor is not practical. Each uses the same weighing hardware and the same control platform, so operators can move between them without retraining.
Buyers usually compare two things: whether the machine will hold its rated output on a hot day with damp aggregates, and whether anyone will answer the phone in year three. HAMAC designs for both.
Key Advantages of Efficient Concrete Work for Housing Projects in El Salvador
Weighing accuracy held to ±1%
Independent load cells per aggregate, per cement and per water line, with automatic drip compensation on every batch.
Mixer options to suit the mix
Twin-shaft for high-strength and pumped mixes, planetary for precast and coloured concrete, pan for dry-cast block production.
Fast site transfer
Mobile versions fold with silo and conveyor attached; one tractor unit and one day are enough to be pouring again.
Built for hot climates
Optional chilled water plant, ice weighing and aggregate shading keep concrete below 30°C on Gulf and African jobsites.
Traceable batch records
Every batch logs mix design, actual weights, moisture correction and truck number, exportable for quality audits.
Cement handling without dust
Bolted silos with cartridge filters, level indicators and aeration pads that keep cement flowing in humid weather.
Technical Parameters
Indicative ranges for standard configurations. Final values are confirmed against your project requirements.
| Parameter | Specification |
|---|---|
| Type | Stationary / mobile / dry-mix skip hoist / containerised |
| Theoretical output | 25 - 240 m³/h |
| Mixer | Twin-shaft JS500-JS4000, planetary MP250-MP3000, or truck-mix discharge |
| Aggregate bins | 2, 3 or 4 compartments, 8 - 30 m³ each |
| Weighing accuracy | Aggregate ±2%, cement ±1%, water ±1%, admixture ±1% |
| Discharge height | 3.8 - 4.2 m standard, higher on request |
| Cement silo | 50 - 300 t bolted silo, optional split silo for fly ash |
| Control system | Industrial PC + PLC, dual-screen, manual/auto switching, remote diagnostics |
Typical Applications
Field experience across our export markets shows a clear pattern of applications.
Remote road camps
Mobile plants moved along the alignment as paving advances
Commercial ready-mix supply
Feeding a fleet of mixer trucks in a metropolitan supply radius
Port and marine works
High-volume, sulphate-resistant mixes placed by pump or tremie
Mining and industrial sites
Captive plants producing mass fill, shotcrete and foundation concrete
Large infrastructure projects
Dedicated on-site plants for dams, bridges, airports and rail corridors
From Enquiry to Commissioning
Six defined stages, each with named deliverables, so nothing is left to interpretation.
Requirement study
We start with your mix design, hourly output target, aggregate size, jobsite power supply and site layout — not with a catalogue page.
Scheme design
Our engineering team issues a layout drawing, foundation loads, power requirement and an equipment list matched to the target output.
Quotation & contract
A fixed specification quotation with clear technical annexes protects both sides; no vague "standard configuration" wording.
Production & inspection
Weekly production photos, welding and pressure test records, plus third-party inspection if your project requires it.
Delivery & installation
Container or break-bulk shipment, then on-site supervision of assembly, alignment, calibration and dry-run.
After-sales
Remote diagnostics by video call, spare parts dispatch within 48 hours for stocked items, and periodic return visits.
Frequently Asked Questions about Efficient Concrete Work for Housing Projects in El Salvador
What about very hot or very cold weather?
For hot climates we offer chiller units and flake ice weighing; for cold climates, aggregate heating, hot water boilers and enclosure cladding.
Should I choose wet-mix or dry-mix?
Wet-mix (central mix) gives better homogeneity, lower cement consumption for the same strength and faster discharge cycles — it is the normal choice for ready-mix. Dry-mix costs less and moves more easily, and works well when trucks mix en route on short hauls.
How much land does the plant need?
A 60 m³/h stationary plant with two 100 t silos needs roughly 30 x 25 m including truck circulation; mobile versions need about half that.
Can it run on a generator?
Yes. We size the genset with the mixer start-up surge in mind — usually 1.6x running load — and can add soft starters to reduce it.
Is the control system available in my language?
The interface supports English, Spanish, Portuguese, French, Russian and Vietnamese; other languages can be added on request.
