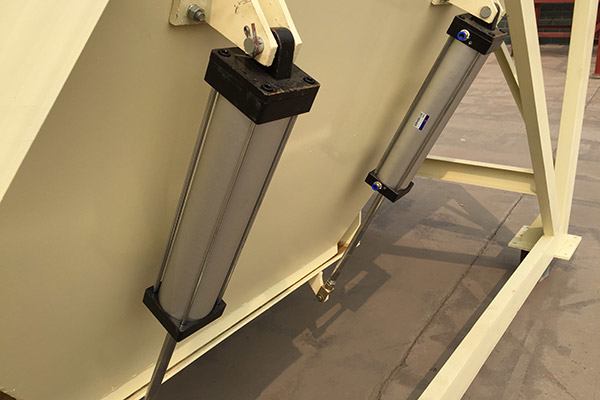

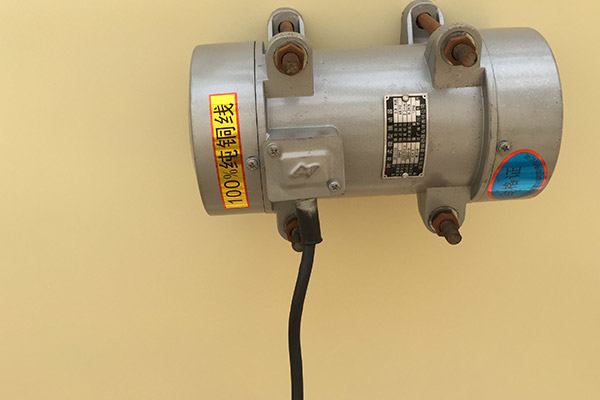

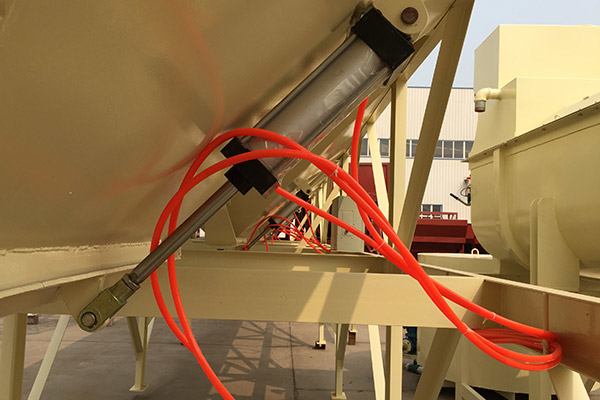

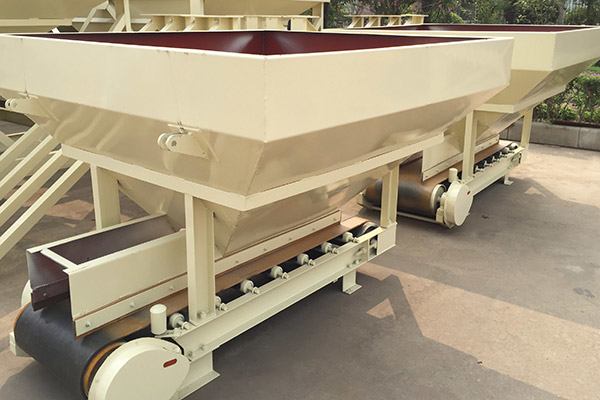

PLD Concrete Batching Machine - Concrete Auxiliary Equipment
PLD series concrete batching machine is automatic batching equipment supporting a mixer. It can automatically complete the ratio of sand, stone, cement and.
Concrete Auxiliary Equipment
PLD Concrete Batching Machine - Concrete Auxiliary Equipment
HAMAC manufactures these items to the same standard as main-line machinery: certified plate steel, jacketed and tested pressure components, sealed bearings at every transfer point, and electrical enclosures protected against cement dust ingress.
The difference between a concrete plant that runs and one that stops is often a 2 kW Component rather than the mixer. Auxiliary equipment — PLD Concrete Batching Machine such as bolted cement silos, screw conveyors, PLD aggregate batchers, belt conveyors, weighing and control systems, and cement-mortar foam machines — is where that reliability is decided.
Buyers usually compare two things: whether the machine will hold its rated output on a hot day with damp aggregates, and whether anyone will answer the phone in year three. HAMAC designs for both.
Key Advantages of PLD Concrete Batching Machine
Dust-free cement handling
Silo top filters, rotary valves and sealed joints protect the plant environment.
Weighing you can audit
Load-cell based batching with calibration ports and documented tolerance verification.
Continuous material flow
Properly sized conveyors and screws keep the mixer waiting on nothing.
Spares available long-term
Motors, gearboxes, belts and filter cartridges use internationally available sizes.
Corrosion protection
Sand-blasted surfaces with epoxy primer and PU topcoat suited to coastal sites.
Standardised interfaces
Flange dimensions, drive units and bearings follow common industrial sizes.
Technical Parameters
Indicative ranges for standard configurations. Final values are confirmed against your project requirements.
| Parameter | Specification |
|---|---|
| Equipment | Bolted cement silo / screw conveyor / PLD batching machine / belt conveyor / mortar foam machine |
| Silo capacity | 30 - 500 tonnes, bolted or welded |
| Screw conveyor | Diameter 168 - 407 mm, length 4 - 18 m |
| Belt conveyor | Width 500 - 1200 mm, capacity up to 600 t/h |
| PLD batcher | 800 - 4800 litres, 2 - 4 bins |
| Weighing system | Load-cell based with digital indicator |
| Drive power | 2.2 - 45 kW depending on unit |
| Protection class | IP54 standard, IP65 optional |
Typical Applications
The applications below reflect the situations in which HAMAC customers most commonly deploy it.
Site logistics
Temporary storage and conveying at remote jobsites
Bulk cement storage yards
Standalone silo farms for importers and terminals
Foamed concrete works
Lightweight fill for voids, roofs and thermal insulation layers
Precast and block plants
Dry material handling and batching for zero-slump production
Grinding and mortar plants
Sealed powder conveying and dust-controlled transfer
From Enquiry to Commissioning
Six defined stages, each with named deliverables, so nothing is left to interpretation.
Requirement study
We start with your mix design, hourly output target, aggregate size, jobsite power supply and site layout — not with a catalogue page.
Scheme design
Our engineering team issues a layout drawing, foundation loads, power requirement and an equipment list matched to the target output.
Quotation & contract
A fixed specification quotation with clear technical annexes protects both sides; no vague "standard configuration" wording.
Production & inspection
Weekly production photos, welding and pressure test records, plus third-party inspection if your project requires it.
Delivery & installation
Container or break-bulk shipment, then on-site supervision of assembly, alignment, calibration and dry-run.
After-sales
Remote diagnostics by video call, spare parts dispatch within 48 hours for stocked items, and periodic return visits.
Frequently Asked Questions about PLD Concrete Batching Machine
Are your screws compatible with other plant brands?
In most cases yes — give us flange dimensions, pitch and motor specification and we will confirm.
Do you supply control cabinets?
Yes, including starters, VFDs, PLC interfaces and MCC panels with documentation.
Can a silo be moved once erected?
Yes, bolted silos are designed to be dismantled and rebuilt, unlike welded units.
What is the service life of conveyor belts?
Typically 2-5 years depending on material abrasiveness, belt speed and maintenance of idlers and scrapers.
Which silo size do I need?
Match silo volume to about five days of cement consumption; for most ready-mix plants that means 100-300 t split between two silos.
