Concrete Pumps & Placing Booms
Trailer Concrete Pump - Concrete Pumps & Placing Booms

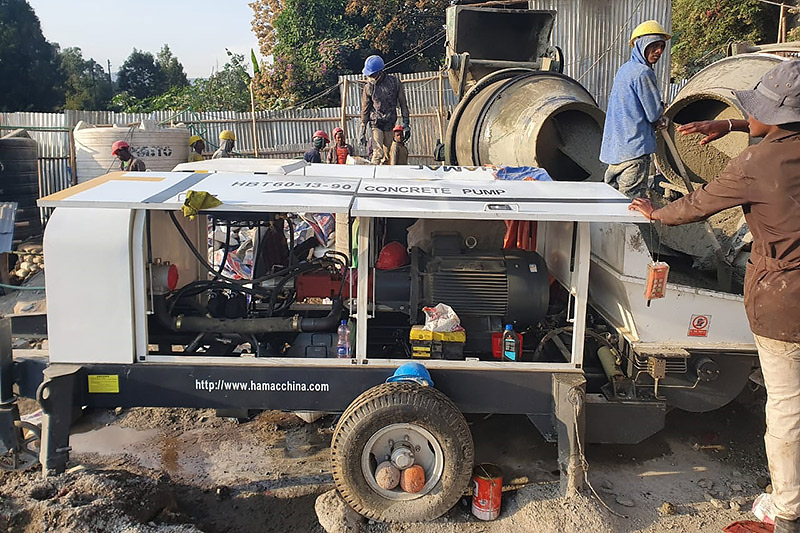

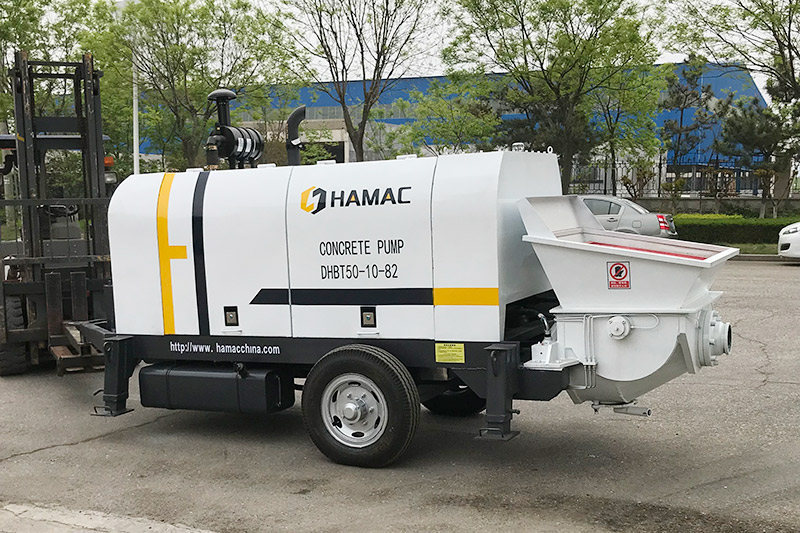

This type concrete pump is mounted on a trailer, and it is commonly referred to as trailer-mounted concrete pump. It is also called stationary concrete pump.
Concrete Pumps & Placing Booms
Trailer Concrete Pump - Concrete Pumps & Placing Booms
HAMAC supplies truck-mounted boom pumps for high-rise and large slabs, static and trailer line pumps for tunnels and long horizontal runs, spider placing booms for wide industrial floors, self-climbing booms that travel with the core of a tower, and separate placing masts for precast yards.
Selection depends on three numbers — peak m³/h required, horizontal distance, and vertical height — plus an honest look at the mix: aggregate shape, fines content and slump determine whether a given pipeline length is achievable at all.
Choosing a Trailer Concrete Pump is rarely decided by the price tag alone. Downtime, concrete quality consistency, fuel consumption per cubic metre and the availability of wear parts across a five-year operating window matter far more to the final cost per tonne or per cubic metre produced.
Key Advantages of Trailer Concrete Pump
Safety built into the controls
Outrigger interlocks, boom angle limits and emergency stop circuits protect both crew and structure.
Boom reach without a crane
Independent placing puts concrete precisely where the crew is working without occupying lifting capacity.
S-tube valve reliability
Hardened wear plates and cutting rings provide extended service intervals under abrasive mixes.
Continuous placement
Steady flow keeps cold joints out of slabs and eliminates the double-handling cost of crane-and-skip methods.
Diesel and electric variants
Choose engine power for remote sites or electric motors for tunnels and urban night work.
Wash-out systems included
Integrated water tank, high-pressure pump and cleaning accessories reduce end-of-shift time.
Technical Parameters
Indicative ranges for standard configurations. Final values are confirmed against your project requirements.
| Parameter | Specification |
|---|---|
| Pump type | Trailer line pump / truck-mounted boom pump / truck mixer with pump |
| Theoretical output | 15 - 120 m³/h |
| Concrete pressure | 5 - 22 MPa |
| Boom vertical reach | 21 - 63 m depending on model |
| Max horizontal distance | 200 - 1500 m with pipeline |
| Distribution valve | S-tube / gate valve |
| Max aggregate size | 20 - 50 mm |
| Power | Diesel engine 60 - 300 kW / electric motor 45 - 200 kW |
Typical Applications
The applications below reflect the situations in which HAMAC customers most commonly deploy it.
Precast and yard casting
Fixed placing booms serving repetitive casting beds
Bridges and viaducts
Long horizontal pumping runs to piers and deck segments
Dams and hydropower
Mass pours with sustained continuous output
High-rise buildings
Vertical concrete delivery exceeding 100 m using riser pipelines or self-climbing booms
Tunnels and mines
Electric line pumps working under low ventilation constraints
From Enquiry to Commissioning
Six defined stages, each with named deliverables, so nothing is left to interpretation.
Requirement study
We start with your mix design, hourly output target, aggregate size, jobsite power supply and site layout — not with a catalogue page.
Scheme design
Our engineering team issues a layout drawing, foundation loads, power requirement and an equipment list matched to the target output.
Quotation & contract
A fixed specification quotation with clear technical annexes protects both sides; no vague "standard configuration" wording.
Production & inspection
Weekly production photos, welding and pressure test records, plus third-party inspection if your project requires it.
Delivery & installation
Container or break-bulk shipment, then on-site supervision of assembly, alignment, calibration and dry-run.
After-sales
Remote diagnostics by video call, spare parts dispatch within 48 hours for stocked items, and periodic return visits.
Frequently Asked Questions about Trailer Concrete Pump
How do I prevent pipeline blockages?
Keep slump at 120-180 mm, maintain adequate fines, prime the line with mortar before each pour and avoid long idle periods.
Do I need a special mix design for pumping?
Yes, a pumpable mix: continuous grading, sufficient fines (roughly 350-400 kg/m³ below 0.25 mm), and no gap-graded coarse aggregate.
How tall can it pump?
Vertical reaches of 100-150 m are routine with correctly designed pipelines and adequate concrete pressure.
Boom pump or line pump?
If the pour point moves often and sits within boom reach, a boom pump wins on labour. If concrete must travel far horizontally or vertically beyond the boom, use a line pump and pipeline.
Can the machine handle low-slump concrete?
Most units are optimised for 120-200 mm slump; below that, pressure requirements rise sharply and output falls.
