Construction Tools & Support Systems

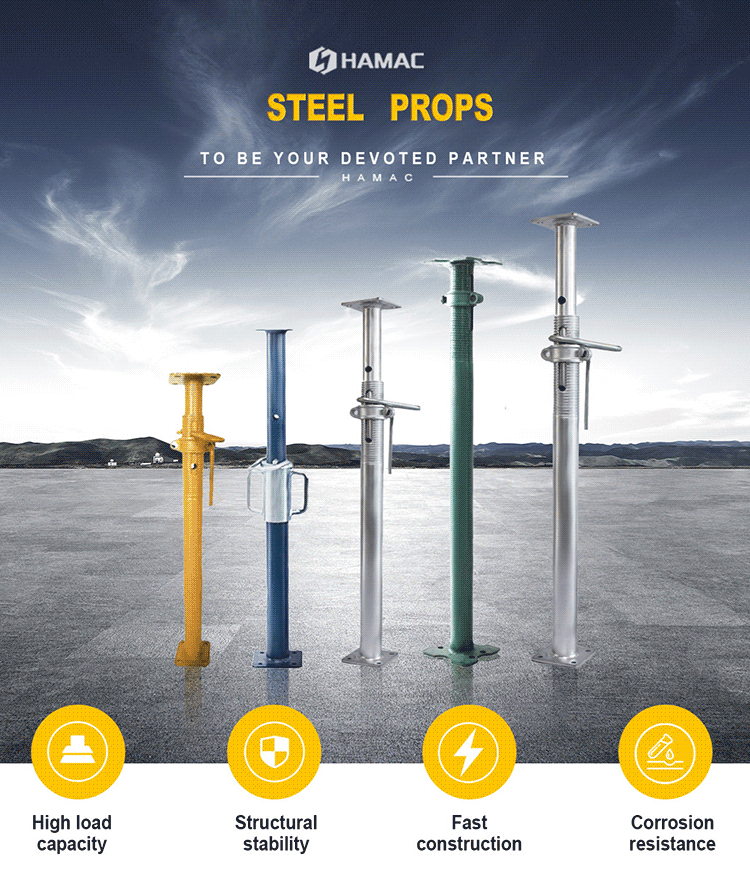

Steel Props - Construction Tools & Support Systems
As a leading manufacturer of steel props, we provide a wide range of Adjustable steel prop, Acrow prop (UK standard), Shoring prop, Telescopic prop, and.
Construction Tools & Support Systems
Steel Props - Construction Tools & Support Systems
Scaffolding components are hot-dip galvanised or painted, dimensionally interchangeable, and supplied with the couplers, base jacks, planks and guard-rail sets needed for complete working platforms.
Temporary works carry more risk than most permanent structures, because nobody is watching them closely until something moves. Steel Props products from HAMAC — adjustable steel props, acrow props, heavy-duty shoring props and tube-and-coupler, frame or system scaffolding — are manufactured to defined load ratings with traceable steel certificates.
Buyers usually compare two things: whether the machine will hold its rated output on a hot day with damp aggregates, and whether anyone will answer the phone in year three. HAMAC designs for both.
Key Advantages of Steel Props
Fast erection and stripping
Lightweight design and simple adjustment nuts reduce labour hours per square metre.
Galvanised durability
Hot-dip galvanising delivers a service life several times longer than painted props in wet climates.
Certified load ratings
Every size carries a declared safe working load verified by proof testing, not estimation.
Complete accessory range
Tripods, fork heads, base plates, ladders and guard rails available from the same shipment.
Interchangeable components
Standardised tube diameter and thread pitch simplify stock management across sites.
Inspection-friendly markings
Batch numbers and load ratings stamped on each unit support site safety audits.
Technical Parameters
Indicative ranges for standard configurations. Final values are confirmed against your project requirements.
| Parameter | Specification |
|---|---|
| Product | Adjustable steel prop / Acrow prop / heavy-duty shoring prop / scaffolding system |
| Height range | 1.6 - 5.0 m depending on model |
| Safe working load | 10 - 40 kN depending on model and extension |
| Tube diameter | 40/48 mm, 48/56 mm, 60/76 mm |
| Wall thickness | 1.6 - 3.5 mm |
| Surface treatment | Hot-dip galvanised / painted / electro-galvanised |
| Standard | EN 1065, BS 4074 or equivalent national standard |
| Accessories | Tripods, U-heads, fork heads, base jacks, couplers and planks |

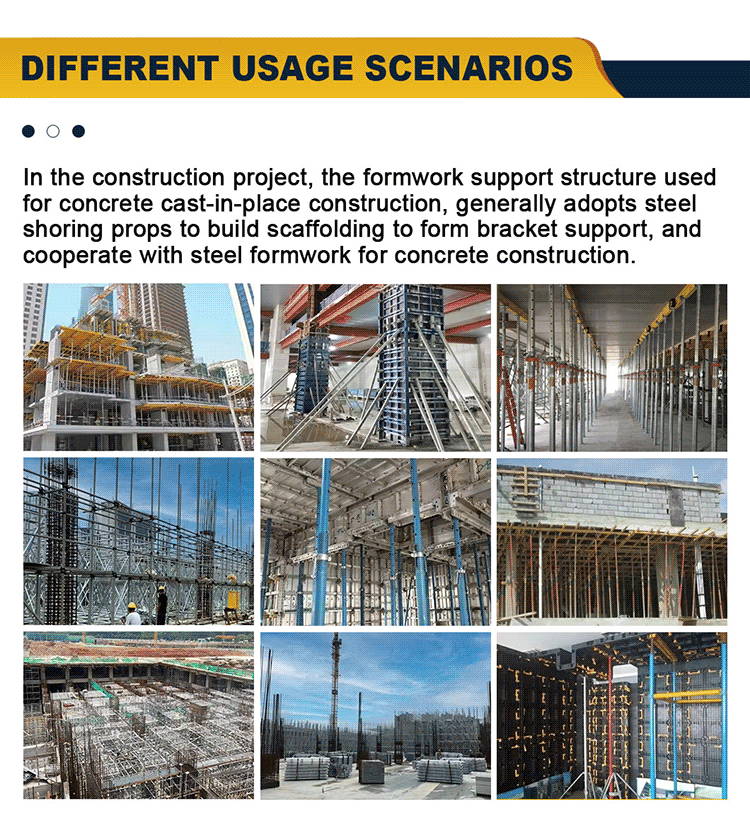

Typical Applications
Field experience across our export markets shows a clear pattern of applications.
Tunnel lining support
Adjustable props used for invert and arch formwork
Bridge and infrastructure works
Heavy-duty towers and falsework for deck construction
Beam and soffit shoring
Temporary vertical load support before permanent structure develops strength
Slab formwork support
Propping horizontal formwork during concrete curing
Facade scaffolding
Access platforms for masonry, plastering and cladding work
From Enquiry to Commissioning
Six defined stages, each with named deliverables, so nothing is left to interpretation.
Requirement study
We start with your mix design, hourly output target, aggregate size, jobsite power supply and site layout — not with a catalogue page.
Scheme design
Our engineering team issues a layout drawing, foundation loads, power requirement and an equipment list matched to the target output.
Quotation & contract
A fixed specification quotation with clear technical annexes protects both sides; no vague "standard configuration" wording.
Production & inspection
Weekly production photos, welding and pressure test records, plus third-party inspection if your project requires it.
Delivery & installation
Container or break-bulk shipment, then on-site supervision of assembly, alignment, calibration and dry-run.
After-sales
Remote diagnostics by video call, spare parts dispatch within 48 hours for stocked items, and periodic return visits.
Frequently Asked Questions about Steel Props
How many props do I need for my slab?
Provide slab area, thickness and pour height and we will calculate prop spacing — typical spacing is 1.0-1.2 m in each direction.
Can I get a mixed container?
Yes — props, scaffolding components and accessories ship together to optimise container utilisation.
Galvanised or painted?
Galvanised costs more upfront but usually wins where equipment is repeatedly exposed to rain or marine air.
Do you supply used props?
No — we only ship new, tested material so the load rating can be certified.
What is the minimum order quantity?
Usually one 20GP container, mixed sizes permitted.
