Concrete Mixer Pumps
1440mm Drum Of Diesel Concrete Pump 8mm Thick Steel Plate 30kw
A 1440mm Drum Of Diesel Concrete Pump 8mm Thick Steel Plate 30kw puts a drum mixer and a concrete pump on one chassis. One diesel engine drives both; one operator controls both; and the truck that would have carried two machines now carries one. For township housing, rural roads, small commercial buildings and repair works, that combination is often the only economic way to pump concrete at all.
The concept is simple but the engineering is not — the pump needs a continuous, well-mixed, correctly slumped feed. HAMAC mixer pumps therefore use a dedicated mixing drum with a hydraulic-driven agitator, followed by an S-tube valve pump with a hopper that keeps the pump cylinders primed.
Most enquiries we receive start after a fleet problem — a pump that loses pressure on long booms, a mixer whose drum liners wear prematurely, a batching plant whose weighing tolerance drifts. Each of those has an engineering answer, and that answer belongs in the design stage rather than in the warranty claim.
Key Advantages of 1440mm Drum Of Diesel Concrete Pump 8mm Thick Steel Plate 30kw
Diesel independence
Runs where site power does not exist, with electric-motor variants available for fixed yards.
Two machines, one footprint
Mixing and pumping in a single towed or truck-mounted unit dramatically reduces mobilisation cost.
Fast set-up
Hydraulic outriggers and folding pipeline mean production begins within about 30 minutes of arrival.
Pumping to distance
Pipelines carry concrete horizontally or vertically to slabs and columns the truck cannot reach.
One operator, one engine
Lower fuel burn and smaller crew compared with running a separate mixer and pump.
Remote-control operation
Cable or radio remote lets a single worker control pour rate from the placement point.
Technical Parameters
Indicative ranges for standard configurations. Final values are confirmed against your project requirements.
| Parameter | Specification |
|---|---|
| Theoretical output | 15 - 50 m³/h |
| Max vertical distance | 30 - 120 m |
| Max horizontal distance | 100 - 500 m |
| Mixing capacity | 350 - 750 litres per batch |
| Concrete slump | 80 - 200 mm |
| Max aggregate size | 20 - 40 mm crushed stone |
| Diesel engine power | 37 - 110 kW |
| Distribution valve | S-tube valve, hydraulic driven |
Typical Applications
The applications below reflect the situations in which HAMAC customers most commonly deploy it.
Water tanks and small bridges
Continuous supply to formwork in confined sites
Township housing and villas
Foundations, slabs and columns for small to medium residential projects

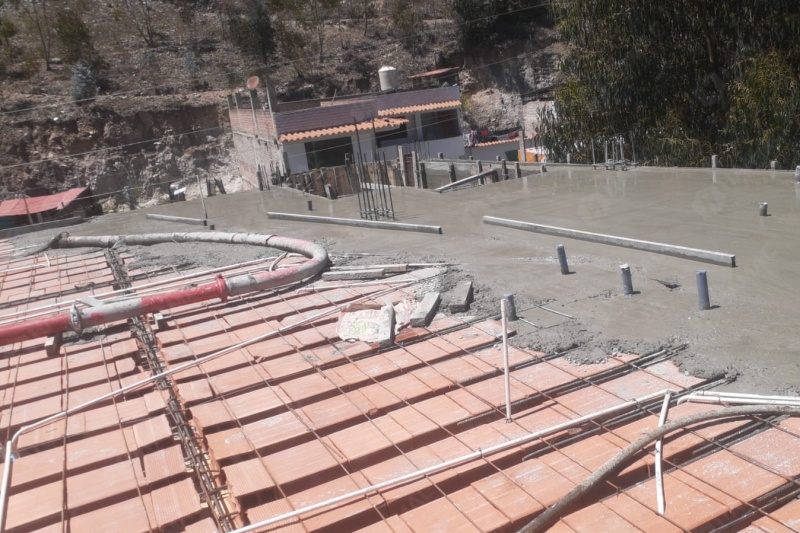

Wall and floor construction
Second-stage pours above the first floor using pipeline risers
Repair and retrofit works
Short, frequent pours inside existing structures
Slab-on-grade and warehouses
Large horizontal pours where placing boom reach is sufficient
From Enquiry to Commissioning
Six defined stages, each with named deliverables, so nothing is left to interpretation.
Requirement study
We start with your mix design, hourly output target, aggregate size, jobsite power supply and site layout — not with a catalogue page.
Scheme design
Our engineering team issues a layout drawing, foundation loads, power requirement and an equipment list matched to the target output.
Quotation & contract
A fixed specification quotation with clear technical annexes protects both sides; no vague "standard configuration" wording.
Production & inspection
Weekly production photos, welding and pressure test records, plus third-party inspection if your project requires it.

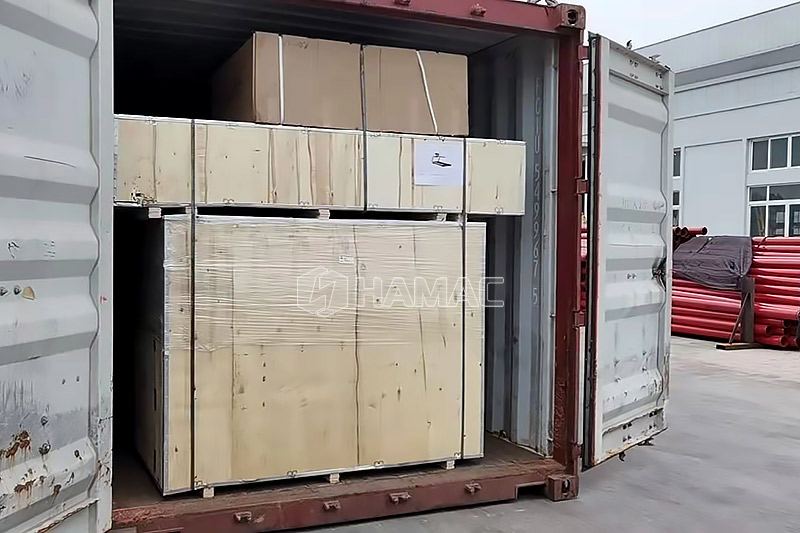

Delivery & installation
Container or break-bulk shipment, then on-site supervision of assembly, alignment, calibration and dry-run.
After-sales
Remote diagnostics by video call, spare parts dispatch within 48 hours for stocked items, and periodic return visits.
Frequently Asked Questions about 1440mm Drum Of Diesel Concrete Pump 8mm Thick Steel Plate 30kw
Which model suits a three-storey building?
A 25-30 m³/h unit with 120 m vertical reach handles most three to five-storey residential structures.
What happens if the pour is interrupted?
The hopper agitator keeps the concrete moving; pipelines beyond roughly 30 minutes of inactivity should be cleaned or the concrete re-primed.
Can I use it as a standalone mixer?
Yes — many customers discharge directly into wheelbarrows or a skip when pumping is not needed.
How many workers does it need?
Normally three: one at the remote control at the placement point, one managing the feed, and one finishing the concrete.
Can the pump handle pumped mixes with 40 mm aggregate?
Models with larger valve openings accept up to 40 mm crushed stone, provided the mix has adequate fines content and slump stays above 120 mm.
