Concrete Batching Plants
Mobile Concrete Batching Plant - Concrete Batching Plants
This series mobile crushing and screening plant is the crushing equipments for rocks and construction waste, which is explored and developed by our company.
Concrete Batching Plants
Mobile Concrete Batching Plant - Concrete Batching Plants
Configuration is driven by real numbers: target hourly output, number of aggregate bins, cement silo capacity, available power and whether you need a winter heating package for low ambient temperatures. Those answers determine the mixer size, aggregate storage volume and the concrete discharge height.
A Mobile Concrete Batching Plant is the heart of any ready-mix operation. Aggregates are stored in bins, weighed on load cells, transferred by skip hoist or belt conveyor, then discharged together with cement, water and admixtures into either a twin-shaft mixer or — on dry-mix layouts — straight into the truck drum. Holding that sequence inside a ±1% weighing tolerance, hour after hour, is what separates a plant that sells concrete from a plant that makes complaints.
Most enquiries we receive start after a fleet problem — a pump that loses pressure on long booms, a mixer whose drum liners wear prematurely, a batching plant whose weighing tolerance drifts. Each of those has an engineering answer, and that answer belongs in the design stage rather than in the warranty claim.
Key Advantages of Mobile Concrete Batching Plant
Weighing accuracy held to ±1%
Independent load cells per aggregate, per cement and per water line, with automatic drip compensation on every batch.
Traceable batch records
Every batch logs mix design, actual weights, moisture correction and truck number, exportable for quality audits.
Fast site transfer
Mobile versions fold with silo and conveyor attached; one tractor unit and one day are enough to be pouring again.
Mixer options to suit the mix
Twin-shaft for high-strength and pumped mixes, planetary for precast and coloured concrete, pan for dry-cast block production.
Built for hot climates
Optional chilled water plant, ice weighing and aggregate shading keep concrete below 30°C on Gulf and African jobsites.
Cement handling without dust

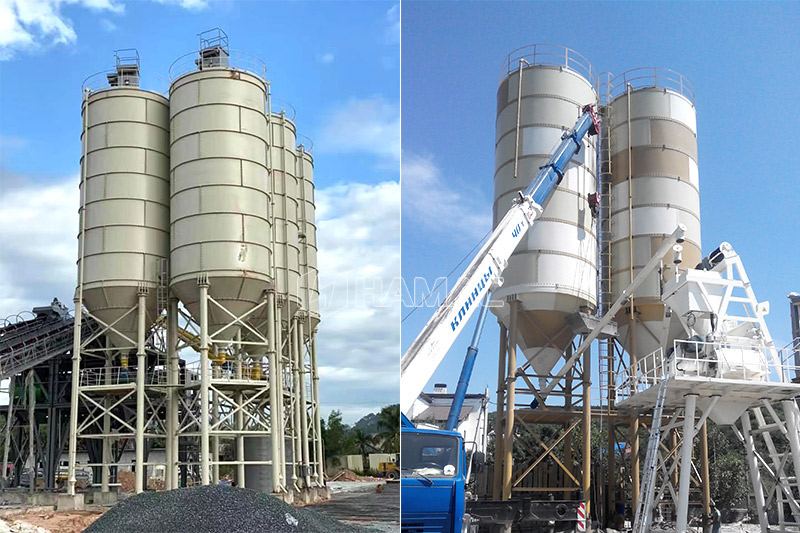

Bolted silos with cartridge filters, level indicators and aeration pads that keep cement flowing in humid weather.
Technical Parameters
Indicative ranges for standard configurations. Final values are confirmed against your project requirements.
| Parameter | Specification |
|---|---|
| Type | Stationary / mobile / dry-mix skip hoist / containerised |
| Theoretical output | 25 - 240 m³/h |
| Mixer | Twin-shaft JS500-JS4000, planetary MP250-MP3000, or truck-mix discharge |
| Aggregate bins | 2, 3 or 4 compartments, 8 - 30 m³ each |
| Weighing accuracy | Aggregate ±2%, cement ±1%, water ±1%, admixture ±1% |
| Discharge height | 3.8 - 4.2 m standard, higher on request |
| Cement silo | 50 - 300 t bolted silo, optional split silo for fly ash |
| Control system | Industrial PC + PLC, dual-screen, manual/auto switching, remote diagnostics |
Typical Applications
The applications below reflect the situations in which HAMAC customers most commonly deploy it.
Remote road camps
Mobile plants moved along the alignment as paving advances
Port and marine works
High-volume, sulphate-resistant mixes placed by pump or tremie
Mining and industrial sites
Captive plants producing mass fill, shotcrete and foundation concrete
Commercial ready-mix supply
Feeding a fleet of mixer trucks in a metropolitan supply radius
Precast factories
Consistent low-slump or zero-slump mixes feeding block machines and moulds
From Enquiry to Commissioning
Six defined stages, each with named deliverables, so nothing is left to interpretation.
Requirement study
We start with your mix design, hourly output target, aggregate size, jobsite power supply and site layout — not with a catalogue page.
Scheme design
Our engineering team issues a layout drawing, foundation loads, power requirement and an equipment list matched to the target output.
Quotation & contract
A fixed specification quotation with clear technical annexes protects both sides; no vague "standard configuration" wording.
Production & inspection
Weekly production photos, welding and pressure test records, plus third-party inspection if your project requires it.
Delivery & installation
Container or break-bulk shipment, then on-site supervision of assembly, alignment, calibration and dry-run.
After-sales
Remote diagnostics by video call, spare parts dispatch within 48 hours for stocked items, and periodic return visits.
Frequently Asked Questions about Mobile Concrete Batching Plant
How long does installation take?
A mobile plant is producing within 2-3 days. A stationary plant typically needs 15-25 days including foundation curing.
Is the control system available in my language?
The interface supports English, Spanish, Portuguese, French, Russian and Vietnamese; other languages can be added on request.
Should I choose wet-mix or dry-mix?
Wet-mix (central mix) gives better homogeneity, lower cement consumption for the same strength and faster discharge cycles — it is the normal choice for ready-mix. Dry-mix costs less and moves more easily, and works well when trucks mix en route on short hauls.
What about very hot or very cold weather?
For hot climates we offer chiller units and flake ice weighing; for cold climates, aggregate heating, hot water boilers and enclosure cladding.
How much land does the plant need?
A 60 m³/h stationary plant with two 100 t silos needs roughly 30 x 25 m including truck circulation; mobile versions need about half that.
