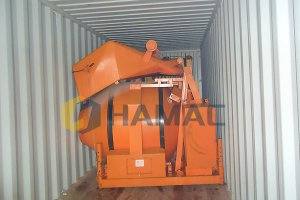

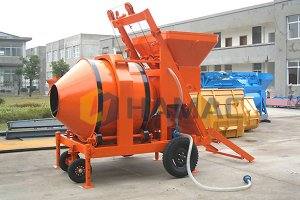

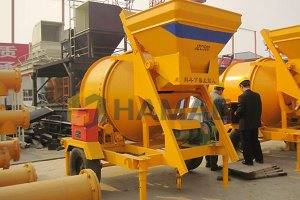

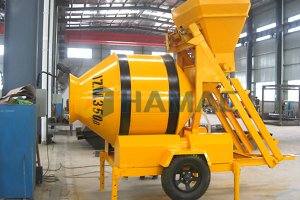

JZC350 Concrete Mixer - Block Making Machines
Since the machine is off-bipyramidal reversal discharging mobile concrete mixer, mixing semi-rigid plastic and concrete. Stir mixing tube is transferred, a.
Block Making Machines
JZC350 Concrete Mixer - Block Making Machines
HAMAC builds both egg-layer machines — economical, no pallets, output onto the floor — and full stationary pallet plants with finger cars, elevators and curing racks for higher volume and better surface finish. Mixing is matched to the machine by either a planetary or a pan mixer.
A JZC350 Concrete Mixer converts zero-slump concrete into saleable units in about 20 seconds: the mould fills, the press head descends while the table vibrates, the green product is demoulded onto a pallet and moves to curing. Everything after that is handling and logistics.
Most enquiries we receive start after a fleet problem — a pump that loses pressure on long booms, a mixer whose drum liners wear prematurely, a batching plant whose weighing tolerance drifts. Each of those has an engineering answer, and that answer belongs in the design stage rather than in the warranty claim.
Key Advantages of JZC350 Concrete Mixer
PLC recipe control
Operators select the product and the machine sets vibration, fill time and press parameters automatically.
Heavy-duty frame
Stress-relieved welded frames resist the fatigue caused by continuous vibration.
Cycle times near 15 seconds
Well-matched moulds and Servo vibration deliver fast demould without green-product damage.
Consistent compaction
Frequency-controlled vibration plus hydraulic press head ensures uniform density across the whole pallet.
Quick mould change
Moulds swap in roughly 20 minutes, allowing mixed product runs in one shift.
Ready spare-parts kit
A consumable and wear-parts package ships with every machine to cover the first production months.
Technical Parameters
Indicative ranges for standard configurations. Final values are confirmed against your project requirements.
| Parameter | Specification |
|---|---|
| Model range | QT4-15, QT5-20, QT6-15, QT8-15, QT9-15, QT10-15 and larger |
| Cycle time | 15 - 25 seconds |
| Pallet size | 850 × 550 to 1400 × 900 mm |
| Vibration force | 35 - 120 kN, frequency adjustable |
| Installed power | 25 - 90 kW |
| Products per pallet | 4 - 12 hollow blocks (390×190×190 mm) |
| Control | PLC with touch screen and fault diagnostics |
| Feeding | Belt conveyor from planetary or pan mixer |
Typical Applications
On typical projects this equipment is selected where output reliability governs the whole schedule.
Hollow and solid blocks
Standard masonry units for load-bearing and partition walls
Fly ash and slag bricks
Industrial by-product utilisation for green building credits
Interlocking pavers
Pedestrian and light-traffic paving with colour-layer option
Retaining wall blocks
Segmental units for landscape and road structures
Hydraulically pressed slabs
Industrial floors and hard-standing areas
From Enquiry to Commissioning
Six defined stages, each with named deliverables, so nothing is left to interpretation.
Requirement study
We start with your mix design, hourly output target, aggregate size, jobsite power supply and site layout — not with a catalogue page.
Scheme design
Our engineering team issues a layout drawing, foundation loads, power requirement and an equipment list matched to the target output.
Quotation & contract
A fixed specification quotation with clear technical annexes protects both sides; no vague "standard configuration" wording.
Production & inspection
Weekly production photos, welding and pressure test records, plus third-party inspection if your project requires it.
Delivery & installation
Container or break-bulk shipment, then on-site supervision of assembly, alignment, calibration and dry-run.
After-sales
Remote diagnostics by video call, spare parts dispatch within 48 hours for stocked items, and periodic return visits.
Frequently Asked Questions about JZC350 Concrete Mixer
Which model should I start with?
For roughly 8,000-10,000 blocks per shift an QT4-15 class machine is mainstream; above 20,000 units per shift consider an QT8-15 or larger pallet plant.
Can I use fly ash instead of cement?
Yes, typically replacing 20-40% of cement by weight, subject to the strength requirement and local standards.
How much labour is needed?
A semi-automatic line needs about 5-7 people; a fully automatic pallet plant needs 3-4 plus forklift handling.
How quickly does it pay back?
Most customers report 8-18 months depending on local block prices, shift pattern and raw material cost.
What about cement content?
Typically 8-12% by weight for hollow blocks depending on the required strength and aggregate quality.
