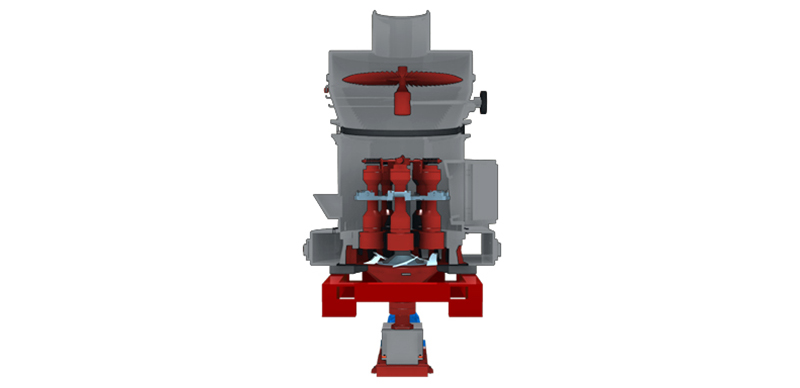

YGM High Pressure Grinding Mill - Industrial Grinding Mills
The YGM High Pressure Grinding Mill is an efficient and energy-saving grinding solution designed for grinding various materials like minerals, ores, and.
Industrial Grinding Mills
YGM High Pressure Grinding Mill - Industrial Grinding Mills
Because dust is both a health hazard and a product loss, both ranges use pulse-jet collectors and fully sealed conveying rather than open transfer points.
Fine powder production is a business of microns. A YGM High pressure Grinding Mill reduces crushed feed — calcium carbonate, gypsum, barite, talc, bentonite, slag, coal gangue or clinker — to a controlled fineness between roughly 80 and 2500 mesh, and does it at an energy cost per tonne that decides whether your product is competitive.
Choosing a YGM High pressure Grinding Mill is rarely decided by the price tag alone. Downtime, concrete quality consistency, fuel consumption per cubic metre and the availability of wear parts across a five-year operating window matter far more to the final cost per tonne or per cubic metre produced.
Key Advantages of YGM High pressure Grinding Mill
Wear-resistant grinding parts
High-chromium alloy rollers and rings extend service life on abrasive materials.
Negative-pressure operation
The whole circuit runs below atmospheric pressure, keeping the plant clean and safe.
Energy-efficient drive
Optimised gear-box ratios and balanced rotors reduce kWh per tonne of finished powder.
High classification accuracy
Cage classifiers cut fines cleanly, narrowing particle size distribution for premium products.
Integrated packing
Valve bag packers and jumbo bag stations complete the line so no secondary handling is needed.
Turnkey engineering
We supply layout, power distribution, dust collection design and commissioning as one scope.
Technical Parameters
Indicative ranges for standard configurations. Final values are confirmed against your project requirements.
| Parameter | Specification |
|---|---|
| Mill type | MTW European-type trapezium mill / YGM high-pressure suspension mill |
| Feed size | ≤ 30 mm |
| Output fineness | 80 - 2500 mesh (0.18 - 0.005 mm) |
| Capacity | 1 - 45 tonnes per hour |
| Main motor power | 18.5 - 315 kW |
| Classifier | Cage type with variable frequency control |
| Dust collection | Pulse-jet bag filter / cyclone + filter combination |
| System configuration | Negative-pressure closed circuit with bucket elevator and packing line |
Typical Applications
Field experience across our export markets shows a clear pattern of applications.
Barite and talc grinding
Weighting agents and cosmetic-grade powder production
Coal gangue and slag processing
Supplementary cementitious material for blended cements
Bentonite and industrial minerals
Drilling mud, foundry binders and pelletising agents
Calcium carbonate and limestone powder
Fillers for plastics, paper, paints and PVC products
Gypsum and plaster operations
Calcined gypsum used in board manufacturing and plasters
From Enquiry to Commissioning
Six defined stages, each with named deliverables, so nothing is left to interpretation.
Requirement study
We start with your mix design, hourly output target, aggregate size, jobsite power supply and site layout — not with a catalogue page.
Scheme design
Our engineering team issues a layout drawing, foundation loads, power requirement and an equipment list matched to the target output.
Quotation & contract
A fixed specification quotation with clear technical annexes protects both sides; no vague "standard configuration" wording.
Production & inspection
Weekly production photos, welding and pressure test records, plus third-party inspection if your project requires it.
Delivery & installation
Container or break-bulk shipment, then on-site supervision of assembly, alignment, calibration and dry-run.
After-sales
Remote diagnostics by video call, spare parts dispatch within 48 hours for stocked items, and periodic return visits.
Frequently Asked Questions about YGM High pressure Grinding Mill
How do I choose between MTW and YGM?
MTW suits larger capacity and harder feed above roughly 20 t/h; YGM is economical mid-range and excels in very high fineness applications.
Do you test my material before quoting?
We recommend sending 20-30 kg of sample; we perform a laboratory grind test and report achievable fineness and capacity.
What is the wear-part life?
Grinding roller and ring sets typically run 2,000-4,000 hours depending on feed abrasiveness.
How much power does the whole line consume?
Roughly 25-45 kWh per tonne of finished powder depending on fineness and feed hardness.
What fineness can I achieve for my product?
Most industrial fillers run between 200 and 1250 mesh; we recommend a laboratory test.
