Concrete batching plant without mixer/ Dry Batching Plant

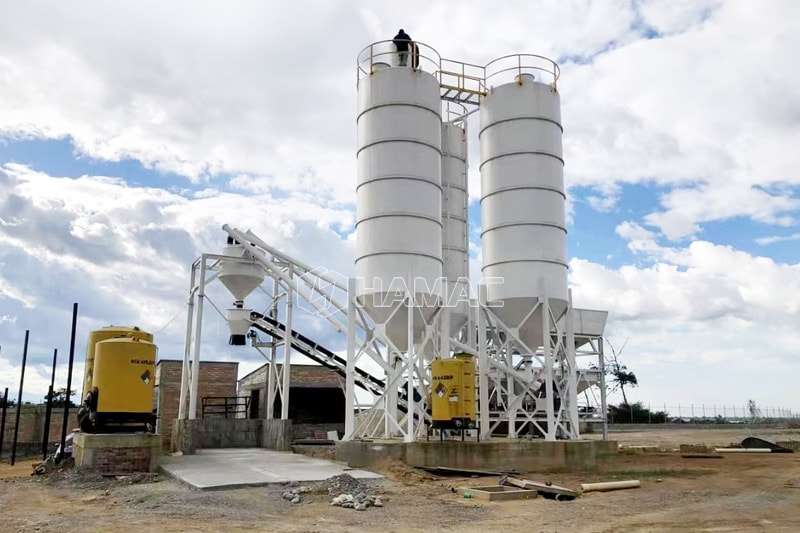

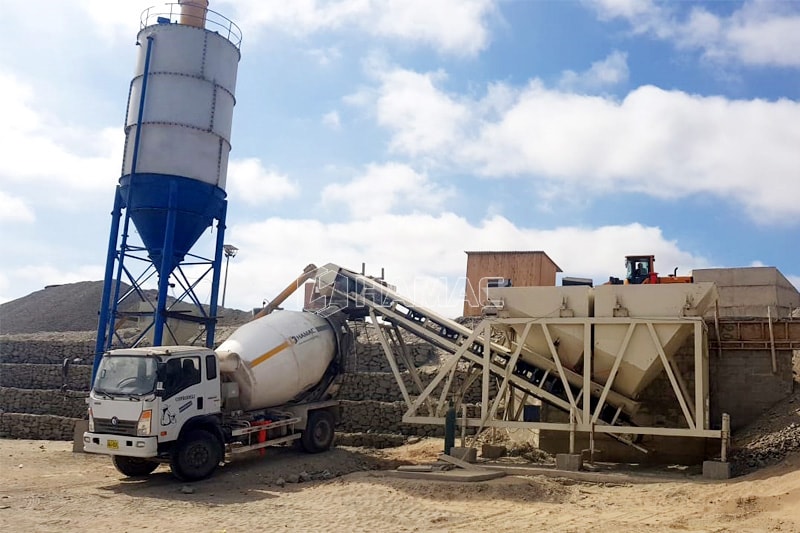

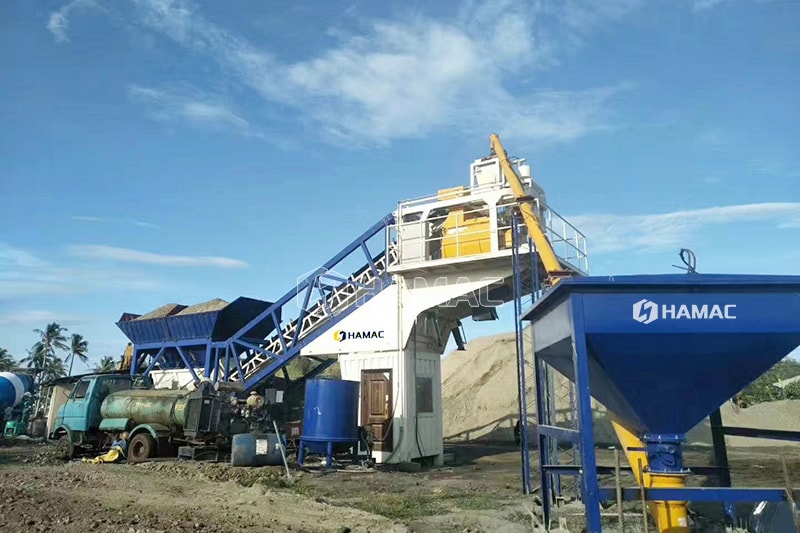

HAMAC Dry batching plant is a full automatic stationary dry type concrete batching plant does not include a mixer. Ingredients of the concrete are.
Concrete Batching Plants
Concrete batching plant without mixer/ Dry Batching Plant
HAMAC builds Concrete batching plant without mixer/ Dry Batching Plant units in three layouts: stationary (bolted or foundation-mounted), mobile units that fold onto one chassis and tow to the next site, and compact dry-mix skip-hoist plants for remote jobs where a belt conveyor is not practical. Each uses the same weighing hardware and the same control platform, so operators can move between them without retraining.
Configuration is driven by real numbers: target hourly output, number of aggregate bins, cement silo capacity, available power and whether you need a winter heating package for low ambient temperatures. Those answers determine the mixer size, aggregate storage volume and the concrete discharge height.
Buyers usually compare two things: whether the machine will hold its rated output on a hot day with damp aggregates, and whether anyone will answer the phone in year three. HAMAC designs for both.
Key Advantages of Concrete batching plant without mixer/ Dry Batching Plant
Weighing accuracy held to ±1%
Independent load cells per aggregate, per cement and per water line, with automatic drip compensation on every batch.
Traceable batch records
Every batch logs mix design, actual weights, moisture correction and truck number, exportable for quality audits.
Fast site transfer
Mobile versions fold with silo and conveyor attached; one tractor unit and one day are enough to be pouring again.
Mixer options to suit the mix
Twin-shaft for high-strength and pumped mixes, planetary for precast and coloured concrete, pan for dry-cast block production.
Cement handling without dust
Bolted silos with cartridge filters, level indicators and aeration pads that keep cement flowing in humid weather.
Built for hot climates
Optional chilled water plant, ice weighing and aggregate shading keep concrete below 30°C on Gulf and African jobsites.
Technical Parameters
Indicative ranges for standard configurations. Final values are confirmed against your project requirements.
| Parameter | Specification |
|---|---|
| Type | Stationary / mobile / dry-mix skip hoist / containerised |
| Theoretical output | 25 - 240 m³/h |
| Mixer | Twin-shaft JS500-JS4000, planetary MP250-MP3000, or truck-mix discharge |
| Aggregate bins | 2, 3 or 4 compartments, 8 - 30 m³ each |
| Weighing accuracy | Aggregate ±2%, cement ±1%, water ±1%, admixture ±1% |
| Discharge height | 3.8 - 4.2 m standard, higher on request |
| Cement silo | 50 - 300 t bolted silo, optional split silo for fly ash |
| Control system | Industrial PC + PLC, dual-screen, manual/auto switching, remote diagnostics |
Typical Applications
On typical projects this equipment is selected where output reliability governs the whole schedule.
Port and marine works
High-volume, sulphate-resistant mixes placed by pump or tremie
Mining and industrial sites
Captive plants producing mass fill, shotcrete and foundation concrete
Commercial ready-mix supply
Feeding a fleet of mixer trucks in a metropolitan supply radius
Precast factories
Consistent low-slump or zero-slump mixes feeding block machines and moulds
Large infrastructure projects
Dedicated on-site plants for dams, bridges, airports and rail corridors
From Enquiry to Commissioning
Six defined stages, each with named deliverables, so nothing is left to interpretation.
Requirement study
We start with your mix design, hourly output target, aggregate size, jobsite power supply and site layout — not with a catalogue page.
Scheme design
Our engineering team issues a layout drawing, foundation loads, power requirement and an equipment list matched to the target output.
Quotation & contract
A fixed specification quotation with clear technical annexes protects both sides; no vague "standard configuration" wording.
Production & inspection
Weekly production photos, welding and pressure test records, plus third-party inspection if your project requires it.
Delivery & installation
Container or break-bulk shipment, then on-site supervision of assembly, alignment, calibration and dry-run.
After-sales
Remote diagnostics by video call, spare parts dispatch within 48 hours for stocked items, and periodic return visits.
Frequently Asked Questions about Concrete batching plant without mixer/ Dry Batching Plant
How long does installation take?
A mobile plant is producing within 2-3 days. A stationary plant typically needs 15-25 days including foundation curing.
How much land does the plant need?
A 60 m³/h stationary plant with two 100 t silos needs roughly 30 x 25 m including truck circulation; mobile versions need about half that.
What about very hot or very cold weather?
For hot climates we offer chiller units and flake ice weighing; for cold climates, aggregate heating, hot water boilers and enclosure cladding.
Should I choose wet-mix or dry-mix?
Wet-mix (central mix) gives better homogeneity, lower cement consumption for the same strength and faster discharge cycles — it is the normal choice for ready-mix. Dry-mix costs less and moves more easily, and works well when trucks mix en route on short hauls.
Can it run on a generator?
Yes. We size the genset with the mixer start-up surge in mind — usually 1.6x running load — and can add soft starters to reduce it.
