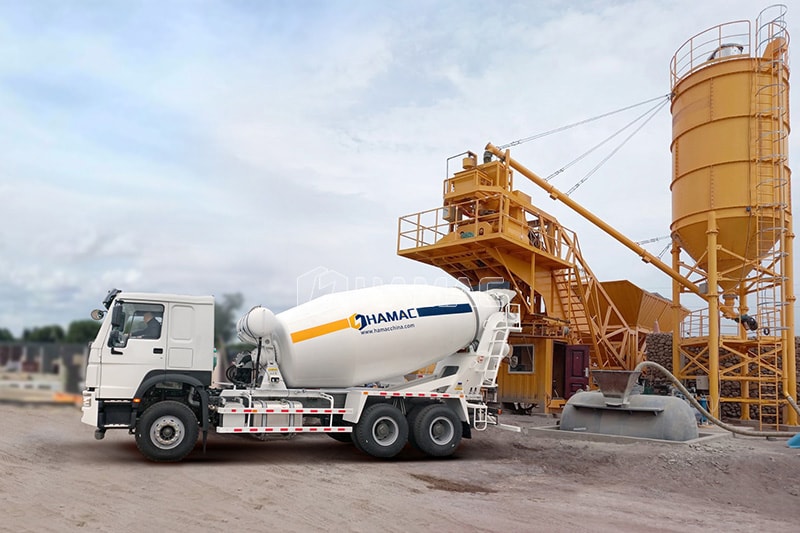

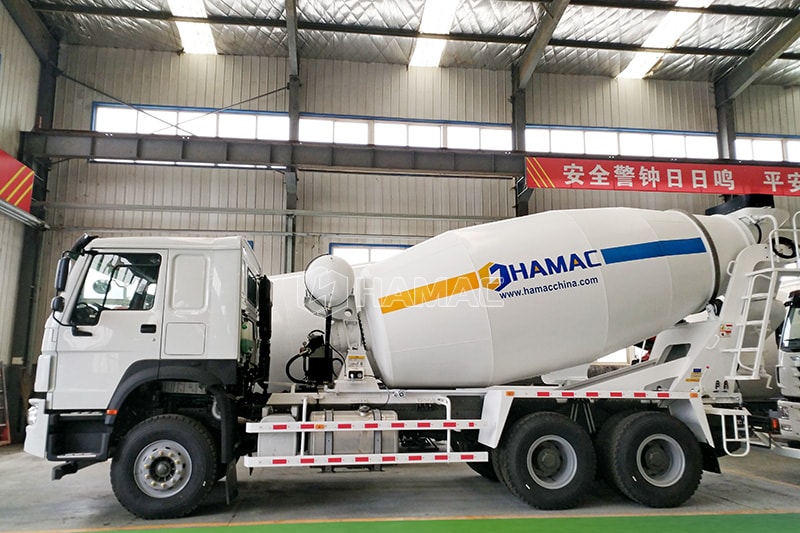

Concrete transportation by concrete mixer truck
For the concrete transportation from the bathing station to the working site, HAMAC provide you with the concrete mixer truck from 4-12m3 volume.
Concrete Mixers
Concrete transportation by concrete mixer truck
Every cubic metre of structural concrete passes through a Concrete transportation by concrete mixer truck. The machine has one job — distribute cement paste evenly around every aggregate particle in the shortest possible cycle — and when it fails, the failure shows up as strength scatter, segregation during pumping or rejected truckloads.
Wear is the real operating cost. Shaft-end seals, liner plates and mixing arms are therefore designed as replaceable assemblies, dimensioned so that maintenance crews can change them on site within a single shift.
Choosing a Concrete transportation by concrete mixer truck is rarely decided by the price tag alone. Downtime, concrete quality consistency, fuel consumption per cubic metre and the availability of wear parts across a five-year operating window matter far more to the final cost per tonne or per cubic metre produced.
Key Advantages of Concrete transportation by concrete mixer truck
Replaceable wear assemblies
Liners, arms and shaft seals are bolted in; no cutting or welding during routine replacement.

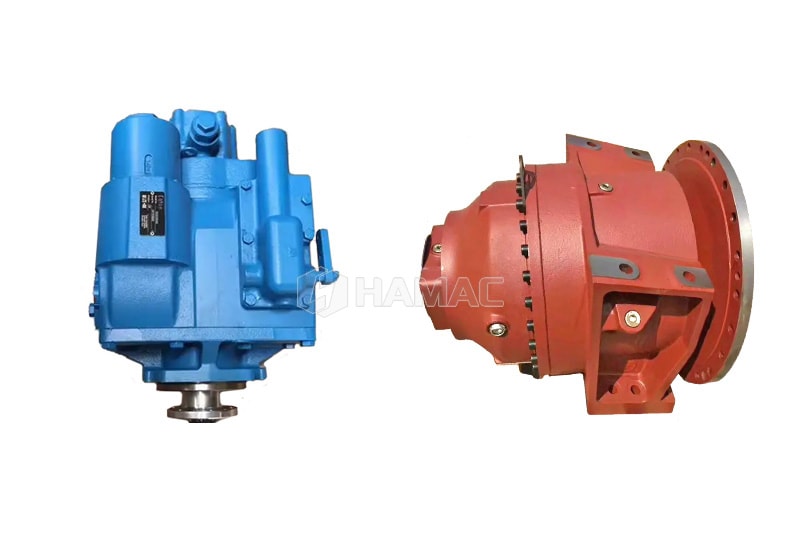

Heavy-duty gearboxes
Planetary gear reducers with forced lubrication are selected for 24/7 duty cycles.
Homogeneity measured, not claimed
Discharge samples tested for strength variance typically fall below 5% across the batch.
Hydraulic or pneumatic discharge
Large-opening gates with adjustable speed prevent segregation at discharge.
Short cycle times
Twin-shaft machines reach full homogeneity in 30-40 seconds, keeping pace with the batching sequence.
Optional tilt/hoist configurations
Available as bare mixer, skip-fed unit, or mounted on a complete plant frame.
Technical Parameters
Indicative ranges for standard configurations. Final values are confirmed against your project requirements.
| Parameter | Specification |
|---|---|
| Mixer type | Twin-shaft / planetary / pan / reversing drum / volumetric |
| Charging capacity | 350 - 6000 litres |
| Output capacity | 250 - 4000 litres per batch |
| Cycle time | 45 - 90 seconds depending on mix |
| Mixing motor power | 11 - 110 kW |
| Discharge | Hydraulic gate / pneumatic gate / reversing drum |
| Liner thickness | 10 - 16 mm wear-resistant plate |
| Drive | Electric motor or diesel engine |
Typical Applications
Field experience across our export markets shows a clear pattern of applications.
Batching plants
Central mixing for ready-mix and project plants
Building sites
Skip-hoist and drum mixers for small-batch site production
Precast factories
Low-slump and colour-consistent concrete for moulded products
Block and paver yards
Dry-cast pan mixers feeding block-making machines
Refractory and chemical plants
Planetary mixers for castables, ceramics and specialised mortars
From Enquiry to Commissioning
Six defined stages, each with named deliverables, so nothing is left to interpretation.
Requirement study
We start with your mix design, hourly output target, aggregate size, jobsite power supply and site layout — not with a catalogue page.
Scheme design
Our engineering team issues a layout drawing, foundation loads, power requirement and an equipment list matched to the target output.
Quotation & contract
A fixed specification quotation with clear technical annexes protects both sides; no vague "standard configuration" wording.
Production & inspection
Weekly production photos, welding and pressure test records, plus third-party inspection if your project requires it.
Delivery & installation
Container or break-bulk shipment, then on-site supervision of assembly, alignment, calibration and dry-run.
After-sales
Remote diagnostics by video call, spare parts dispatch within 48 hours for stocked items, and periodic return visits.
Frequently Asked Questions about Concrete transportation by concrete mixer truck
Twin-shaft or planetary?
Twin-shaft wins on throughput and simple maintenance for ready-mix volumes; planetary gives superior homogeneity for low-slump, coloured or fibre-reinforced mixes and is preferred in precast.
What maintenance is needed on the shaft seals?
Automatic grease injection every shift and shaft-end seal inspection weekly; seals are normally replaced annually.
Can you supply only the mixer to retrofit an existing plant?
Yes. We supply bare mixers with mounting frames, gate actuators and control interfaces for third-party plants.
How do I size the mixer to my plant output?
Match batch size to the plant.s rated hourly output divided by the number of batches per hour — normally 40-50 for a twin-shaft installation.
Is a moisture probe included?
Yes — microwave moisture sensing with automatic water correction is standard on plant-mounted units.
Related Equipment & Resources

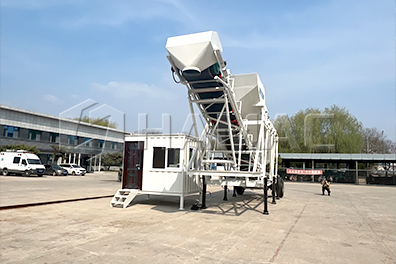

Concrete batching plant without mixer/ Dry Batching Plant
Engineering, manufacturing and after-sales support for Concrete batching plant without mixer/ Dry Batching Plant — specification.
View details
Hoisting Hopper Type Concrete Batching Plant
Engineering, manufacturing and after-sales support for Hoisting Hopper Type Concrete Batching Plant — specification, layout and.
View details
Portable Concrete Batching Plant
Engineering, manufacturing and after-sales support for Portable Concrete Batching Plant — specification, layout and quotation on.
View details
Mobile Concrete Batching Plant
Engineering, manufacturing and after-sales support for Mobile Concrete Batching Plant — specification, layout and quotation on.
View details

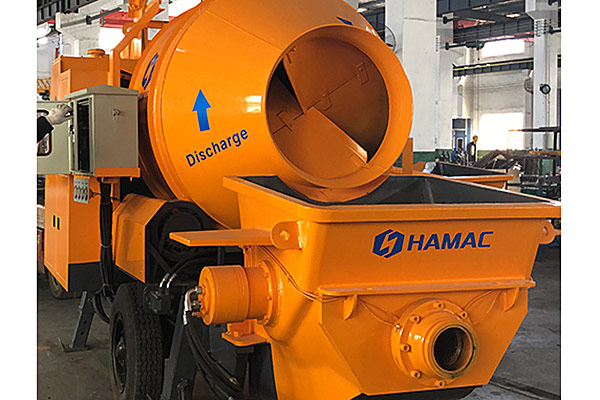

Produce concrete at site
